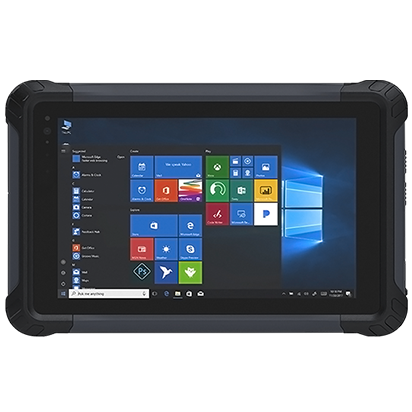

UT20

7” Rugged Windows Tablet

The fully rugged UT20 windows 10 tablets with a 7-inch screen easily mountable on a pole is just the right size for surveying work. It's thin and light with an ergonomic design that's easy to hold and comfortable to use with one hand, making it the ideal solution for improved mobility and productivity. It is one of the best offers with a windows operating system which has a good battery life. The screen is made with a 550-nits providing greater sunlight readability. The UT20 is all what you need to be the best in the field.

Contact Us Now

Built to Survive

Enjoy the sleekest look in the eSurvey product line, thin and tough right down to the chassis, and protection against drips, shocks, spills, and vibration for it is certified IP68 and MIL-STD.

Built to Capture

·       - Store all information collected on the field with large storage memory.

·       - Accurately document your data with a rear camera.

·       - Quickly and excellently finish your job, with both barcode scanning and RFID reading capabilities.

Fast Connection and Accurate GPS

·       Obtain fast and accurate location information via the in-built GNSS chipset, which makes UT20 a perfect device for anyone using GPS, BDS, and GLONASS data in the field.

·       Freely choose 4G LTE, allowing UT20 to transmit and receive data from any environment.

Impressive Battery Life

Work up to 4 hours, and enjoy the hot-swap battery that allows its screen standby for up to 3 minutes.

Product

UT20

System

Processor

Intel ApolloLake N3350 1.1 GHz (up to 2.4 GHz)

OS

Microsoft Windows 10 Enterprise 64bit

Memory

4 GB

ROM

64 GB EMMC

Screen

Screen size

7”

Resolution

1280 x 800

Density

320 dpi

Brightness

550 nits

Touch panel

Capacitive

Camera

Rear

8 MP

Flashlight

Support

Autofocus

Support

Power Supply

Battery

Rechargeable and replaceable Lithium-ion battery 7.6 V, 4050 mAh

Working time

4 - 6 hours

Charging time

4 hours

Speaker

Support

Microphone

Support

Light

Support

Proximity

Support

Magnetometer

Support

Gyroscope

Support

Accelerometer

Support

Gravity

Support

Compass

Support

Barometer

Support

GNSS

Tracking

GPS, BDS, GLONASS, GALILEO

Accuracy

·       Single: 1 - 3m

Communication

GSM

·       GSM, WCDMA, LTE

·       Nano SIM x 1

Wi-Fi

802.11 a/b/g/n/ac (2.4 & 5GHz)

Bluetooth

V4.2 or above

SD card

128 GB (Micro SD card)

USB

·       USB Type-C x 1

·       USB3.0 x 1

·       Support OTG

Physical

Dimension

207 mm x 138 mm x 19.8 mm

Weight

745g with battery

575g without battery

Operating temperature

-20℃ - +60℃

Storage temperature

-40℃ - +70℃

Water / dust-proof

IP 68

Shock

Survive a 1.5 m drop on the concrete floor

Humidity

0-95% RH, non-condensing

Buttons

·       Power x 1

·       FN x 2

Certificate

FCC, CE, ROHS, REACH, WEEE, RCM, E-mark
  • UT20 Quick Start Guide-V1.0-ENG.pdf
  • UT20 Datasheet-V2.1-ENG.pdf
