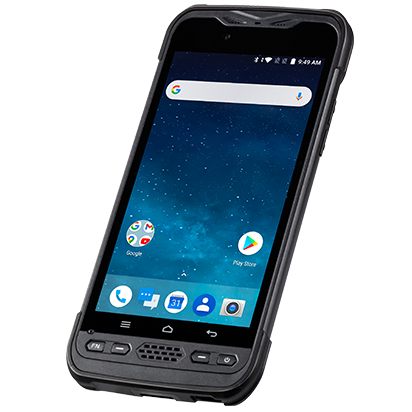

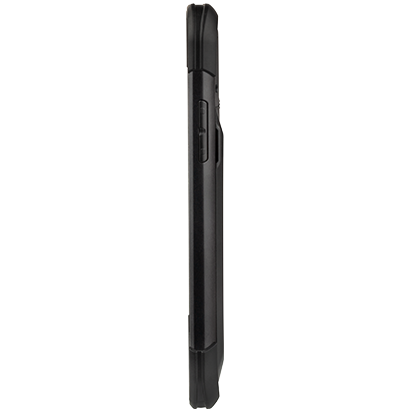

UT12P

6” Rugged Android Handheld

All field operations must be conducted with the right devices to solve problems and extend the mobility of workers. In an increasingly digital world, productivity is closely linked to the quality of the equipment deployed. The UT12P looks great as a rugged smartphone and certified IP68 along with MIL-STD-810G can be used as both a smartphone and a handy tool in rustic working conditions minimizing the risk of damage, the cost of repairs and downtime your work.

Contact Us Now

Powerful Satellite Tracking Ability

Improve your survey job with an inbuilt GNSS chip that can receive GPS, BDS, and GLONASS signals with sub-meter-level accuracy.

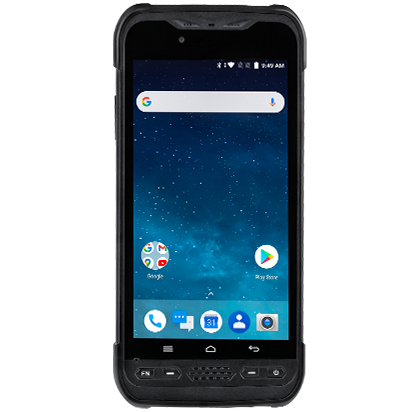

Full-HD Display

Work dry or in the rain with a high brightness sunlight readable panel, 6-inch, with a resolution of 1920*1080 px.

Distinctive Performance

·       Continuously works a whole day with no fear of dead batteries after a long field day, with its 8000 mAh rechargeable and replaceable lithium-ion battery.

·       Supports 4G LTE internet to communicate without limitation, with its dual SIM card module.

Full-featured Handheld

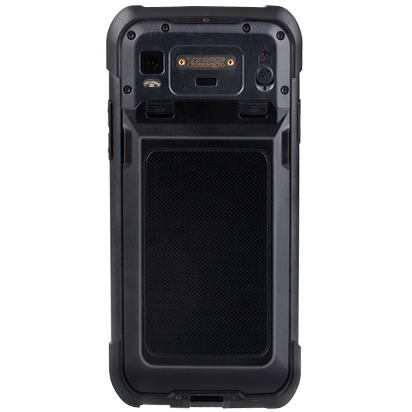

Treat it like your cellphone-call, text, take photos, etc. The pogo pin behind its back allows an external module mounted on top.

Product

UT12P

System

Processor

Qualcomm MSM8953 Pro Octane-Core 2.2 GHz

OS

Android 10.0

Memory

4 GB

ROM

64 GB

Screen

Screen size

6”

Resolution

1920 x 1080

Density

480 dpi

Brightness

450 nits

Touch panel

Capacitive

Camera

Rear

13 MP

Flashlight

Support

Autofocus

Support

Power Supply

Battery

Rechargeable and replaceable Lithium-ion battery 3.8 V, 8000 mAh

Working time

>15 hours

Charging time

≤ 7 hours

Speaker

Support

Microphone

Support

Light

Support

Proximity

Support

Magnetometer

Support

Gyroscope

Support

Accelerometer

Support

Gravity

Support

Compass

Support

Barometer

Support

GNSS

Tracking

GPS, BDS, GLONASS, GALILEO

Accuracy

Single: 1 - 3 m

Communication

GSM

GSM, WCDMA, LTE

Nano SIM x 2

Wi-Fi

802.11 a/b/g/n/ac (2.4 & 5GHz)

Bluetooth

V4.1

SD card

Up to 128 GB

USB

USB Type-C x 1

Support OTG and headphone

Physical

Dimension

191.6 mm x 91 mm x 14.5 mm

Weight

375g with battery

230g without battery

Operating temperature

-20℃ - +60℃

Storage temperature

-40℃ - +70℃

Water / dust-proof

IP 68

Shock

Survive a 1.5 m drop on concrete floor

Humidity

0-95% RH, non-condensing

Buttons

PTT x 1

Volume (+/-) x 1

Power x 1

FN x 3

Certificate

FCC, CE, ROHS, REACH, WEEE, RCM, E-mark
  • UT12P Datasheet-V2.1-ENG.pdf
