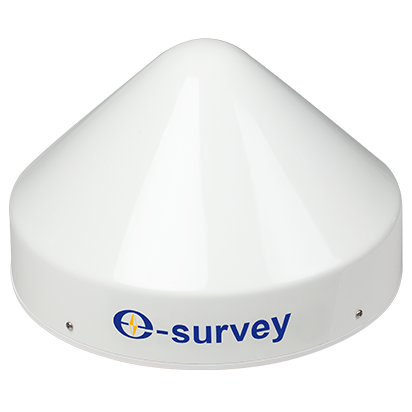

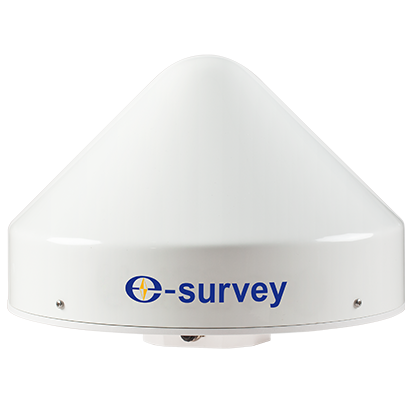

UA91 adopts high-gain broadband antenna to receive GNSS signals such as GPS, BDS, GLONASS, Galileo, QZSS and L-Band. The scheme of multi-stage 3D choke coils with completely symmetrical distribution is adopted to achieve higher phase center stability and excellent anti-multipath interference performance. It has excellent performance that the phase center coincides with the mechanical center.
Contact Us NowPowerful Satellite Tracking Capacity
Obtain all available and reliable data sources, with total channels
and all signals (GPS, BDS, GLONASS, GALILEO, IRNSS, QZSS, and SBAS) of GNSS
tracking.
Temperature Performance
The UA91 works in the range of temperatures from -55℃ - to +85℃, and stores in
-55℃ - +90℃.
High Phase Center Accuracy
Experience millimeter phase center accuracy with higher stability
Rugged Design for Harsh Environments
Use it for many years with IP67 design, which is 95% protected against
solid objects like dust and sand, and it has been tested to work for at least
30 minutes under 15 cm to 1 m of water.
Excellent Multipath Suppression Effect
Due to the unique 3D choke coil design and electrostatic protection
against eight kv of air and four kv of static electricity, no longer a need to
worry about interference by multipath.
High Gain
The UA91 uses a high-gain wide-band dual-band multimode GNSS measuring
antenna to achieve coverage of the GNSS signal reception.
Antenna
Performance |
UA91 |
|
Satellites tracking |
GPS |
L1, L2, L5 |
BDS |
B1, B2, B3 |
|
GLONASS |
G1, G2, G3 |
|
GALILEO |
E1, E2, E5, E6C |
|
QZSS |
L1, L2, L5 |
|
IRNSS |
L5 |
|
SBAS |
L1 |
|
L-Band |
L-Band |
|
Polarization |
Right-handed circular |
|
Axis ratio |
-
≤2
dB @Axial -
≤4
dB @Elevation angle 20° |
|
Antenna gain |
-
≥
5 dBi @Axial -
≤
-3 dBi @Elevation angle 20° |
|
Out-of-roundness |
≤ 1 dBi @Elevation angle 20° |
|
Phase center offset |
± 1.5 mm |
|
Low Noise Amplifier Performance |
||
Frequency range |
1525 - 1615 MHz, 1165 - 1278 MHz |
|
Characteristic impedance |
50 Ω |
|
VSWR |
≤ 1.3:1 |
|
Noise figure |
1.6 dB typically @ 25° |
|
LNA gain |
52 ± 2 dB @ 25℃ |
|
In-band flatness |
± 1.5 dB |
|
Out-of-band suppression |
-
L1
± 200 MHz >40 dBc -
L2
± 200 MHz >50 dBc |
|
Differential transmission delay |
≤ 5 ns (L1-L2) |
|
Antenna transmission delay |
15 ns (Typically) |
|
Voltage |
3.3 - 12 V dc |
|
Current |
≤ 45 mA |
|
Environmental Performance |
||
Operating temperature |
-55℃ - +85℃ |
|
Storage temperature |
-55℃ - +90℃ |
|
Humidity |
Up to 95% |
|
Water/dust proof |
IP67 |
|
Physical |
||

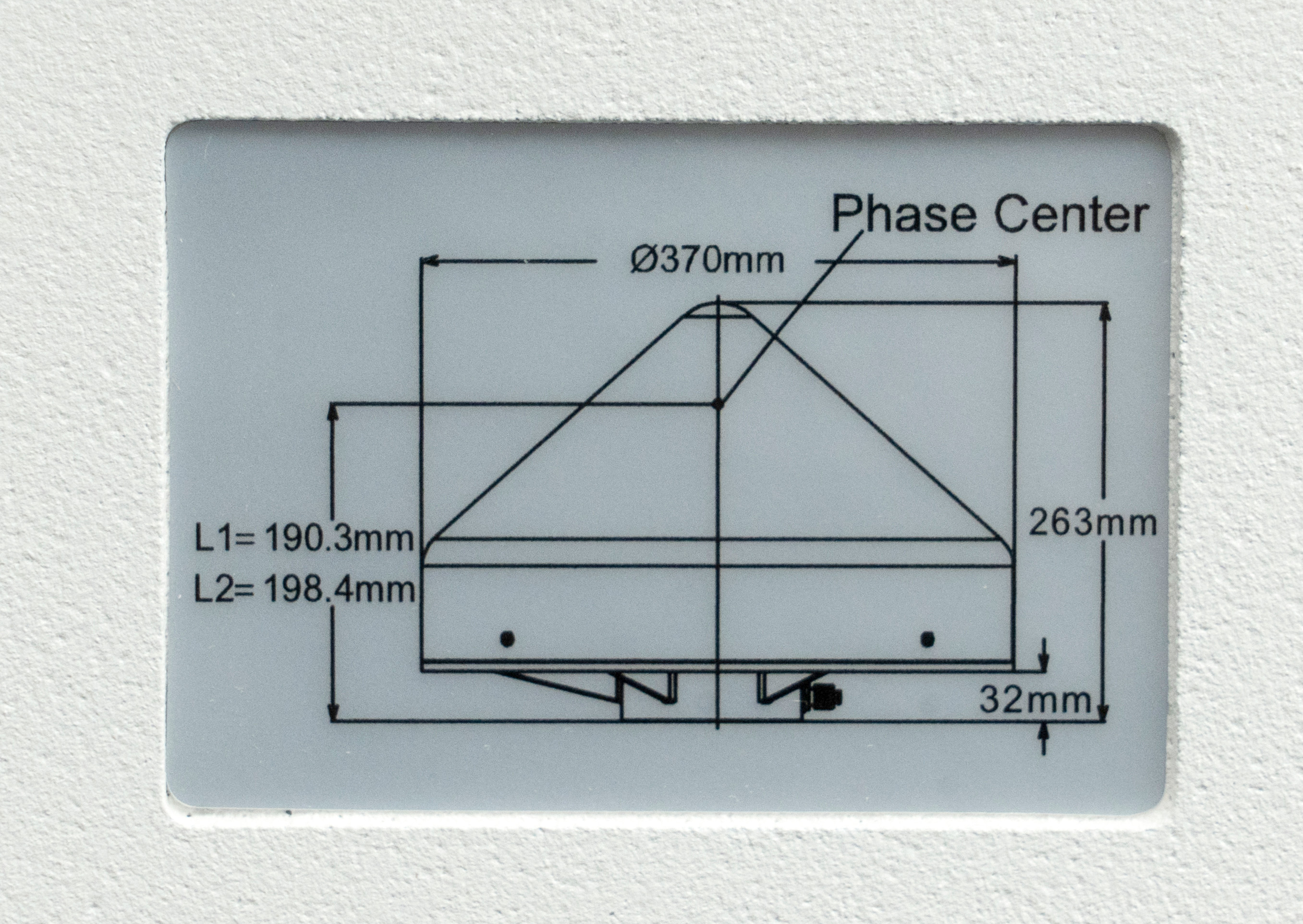

Dimension |
D370 mm x H263 mm |
|
Weight |
7700 g |
|

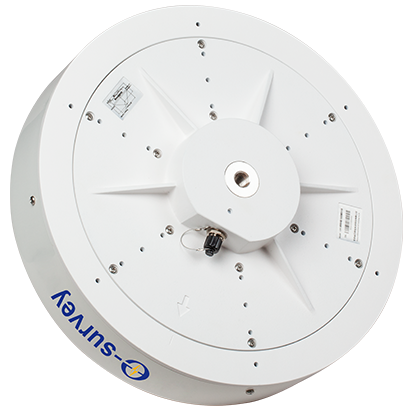

Antenna Interface |
TNC-F |
|
Radome material |
FRP |
|
Base material |
Aluminum magnesium alloy |
|
Mount |
5/8-11 UNC-2B |
