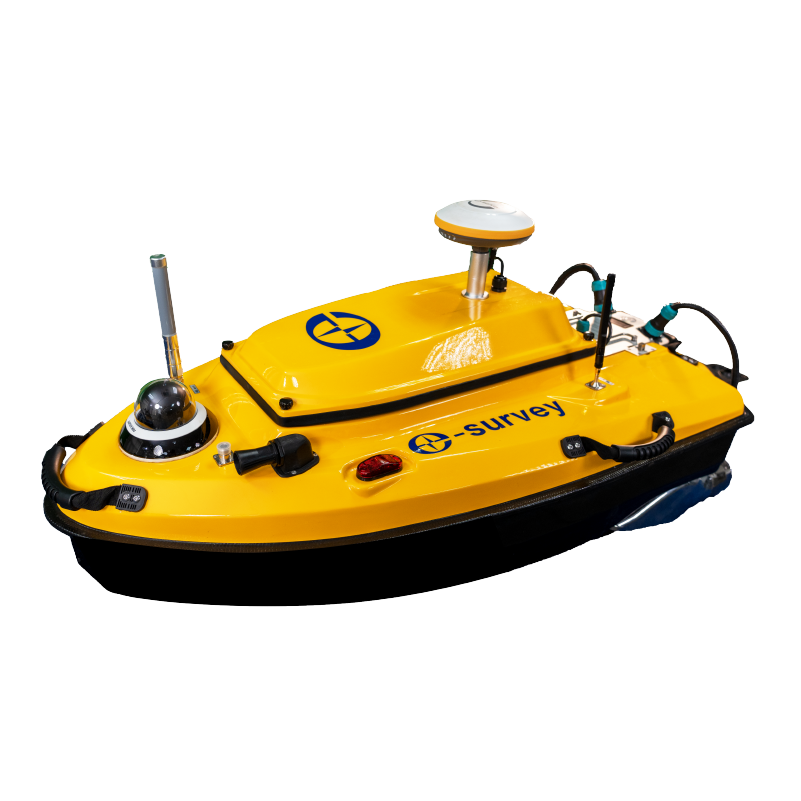

VE115

Exceptional Hull Design

Experience a trapezoidal-shaped trimaran with better load and better ability against wind and waves, no longer need to worry about bumping and stranding for the installation position of the propeller levels. The hull makes placing the USV on the shallow shore possible.

Expand Your Unmanned Survey Capability

Freely choose the most suitable GNSS system from all eSurvey GNSS receivers and the needed sensors from single-beam echo sounder, dual single-beam echo sounder, ADCP, and online water quality monitoring system and water sampling system.

Modular Design and Ease of Maintenance

Easily assemble and disassemble all parts for maintenance, and experience remote assistance if there is a hardware problem. That is, we can remotely guide you to detect which part is wrong and send you the parts to replace it, which greatly simplifies the repair process and avoids delays in sending the whole USV back.

Compatible with ADCP, Long Endurance

The VE115 supports a wide variety of Acoustic Doppler Current Profiler (ADCP) systems available on the market. The VE115 weighs 25 kg, it’s easy for two men to operate and transport. Powerful battery and low consumption support 6 hours of endurance.

Powerful technology: 700W Power for Each Thruster

The VE115 can reach 6 m/s by 1400w total strong power, which can perform well against water current. It is better for use in the ADCP survey.

Multiple Safety Protection Mechanisms

Monitor the operational status of the USV in real-time, supported by the 360 ° full view camera, no longer need to worry about obstacles encountered during navigation for the ultrasonic obstacles avoidance module can help timely and effectively avoid obstacles, and no longer need to worry about communication loss due to the multiple low-voltage and safe return mechanisms to ensure navigation safety.
