Centimeter-level Accuracy

Satisfy all your excavator construction needs; the real-time positioning accuracy can be up to ± 3 cm.

Getting More in Less Time

Work faster and more efficiently by guiding excavator operations, including improving operation efficiency, reducing auxiliary measurement operators, improving the accuracy of operation results, and reducing repeated data checks.

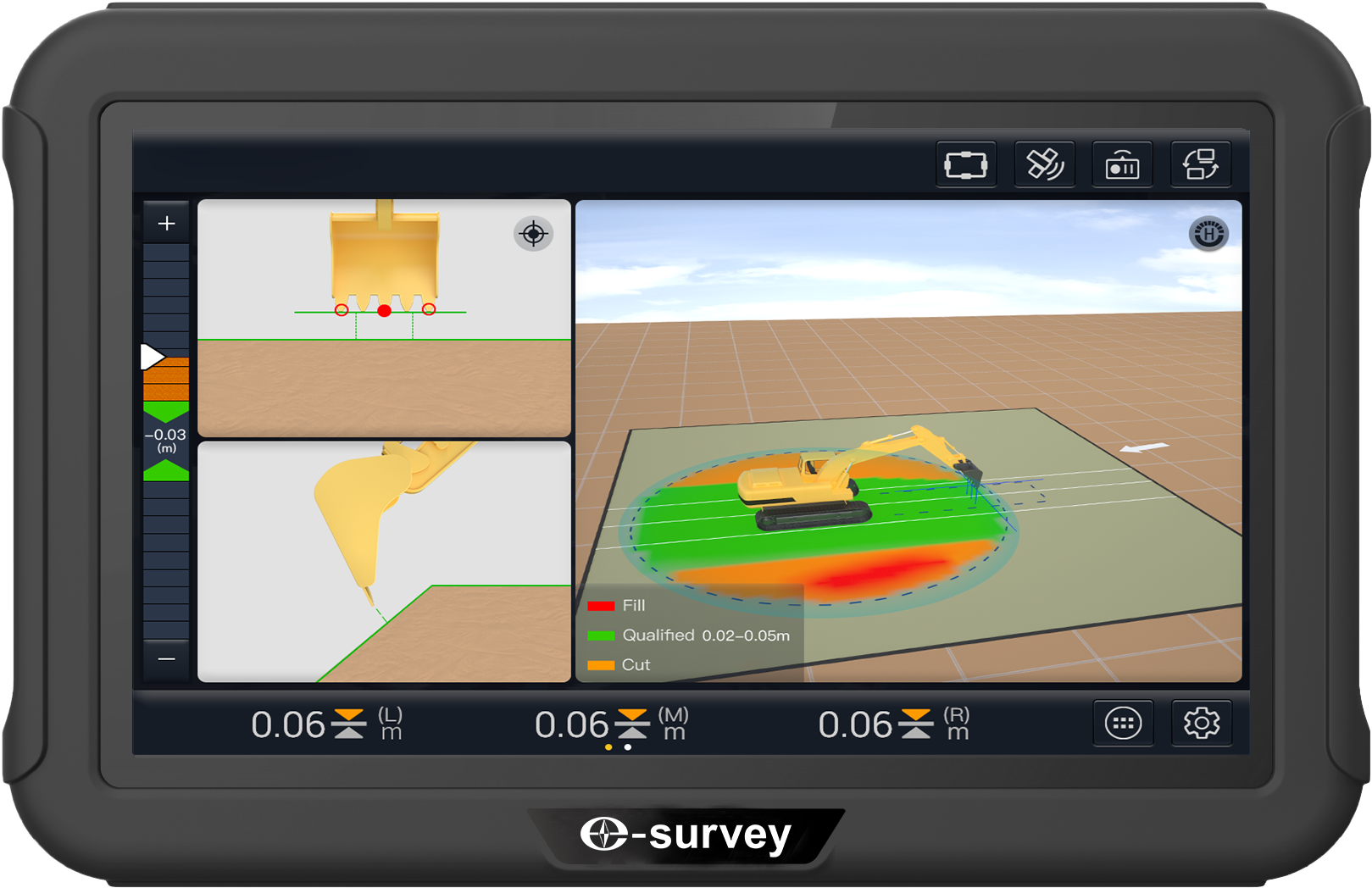

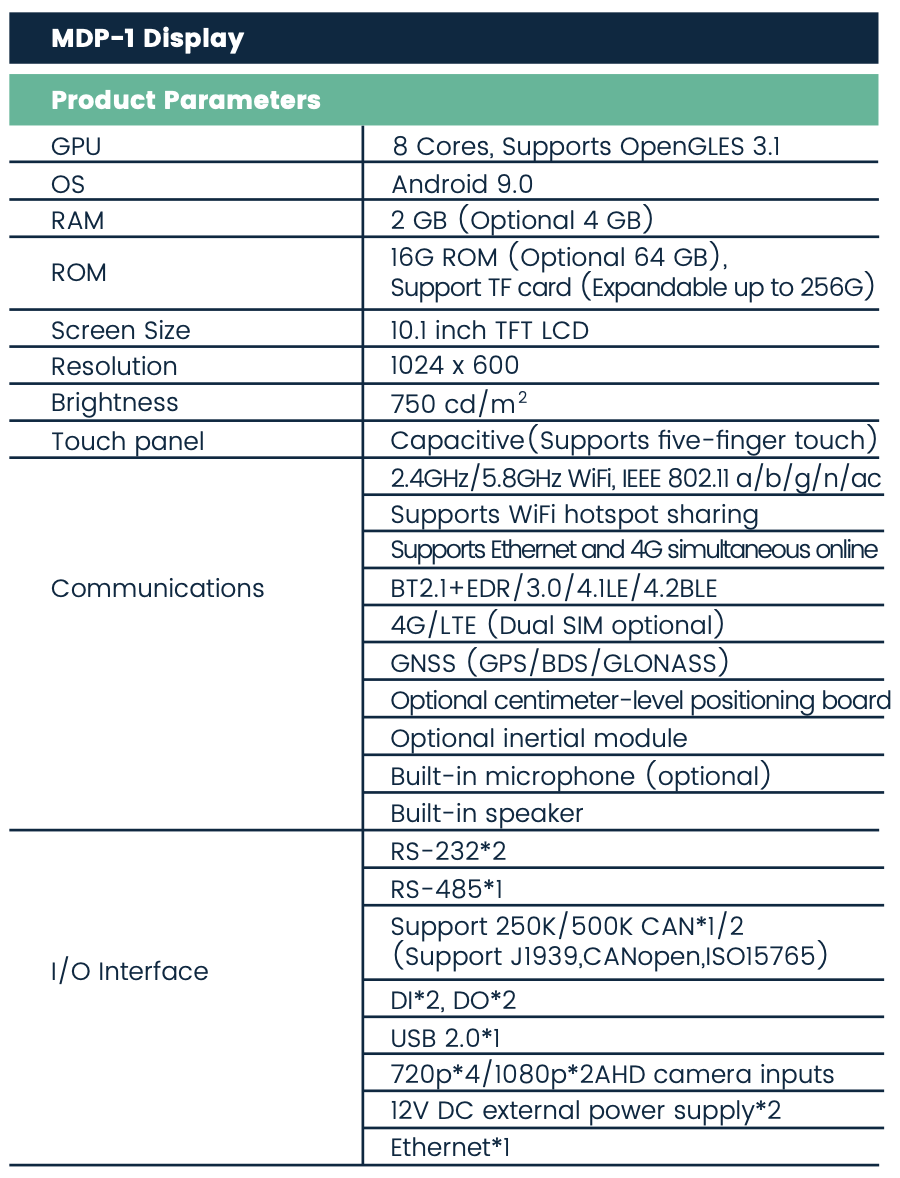

10.1 Inch Screen

The 10.1-inch screen with 1024 * 600 resolution makes the tablet a high-fidelity device. 750 cd/m2 brightness makes it sunlight viewable.

Rugged Hardware

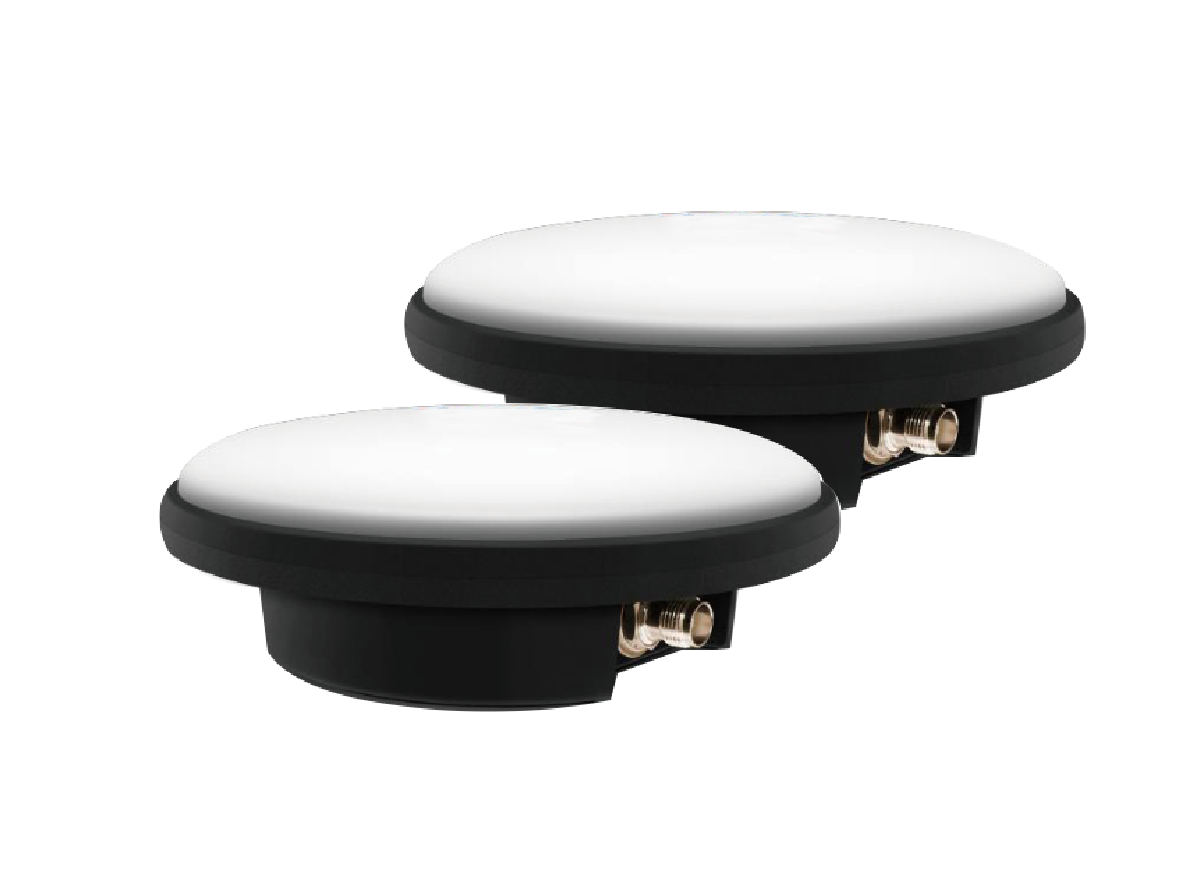

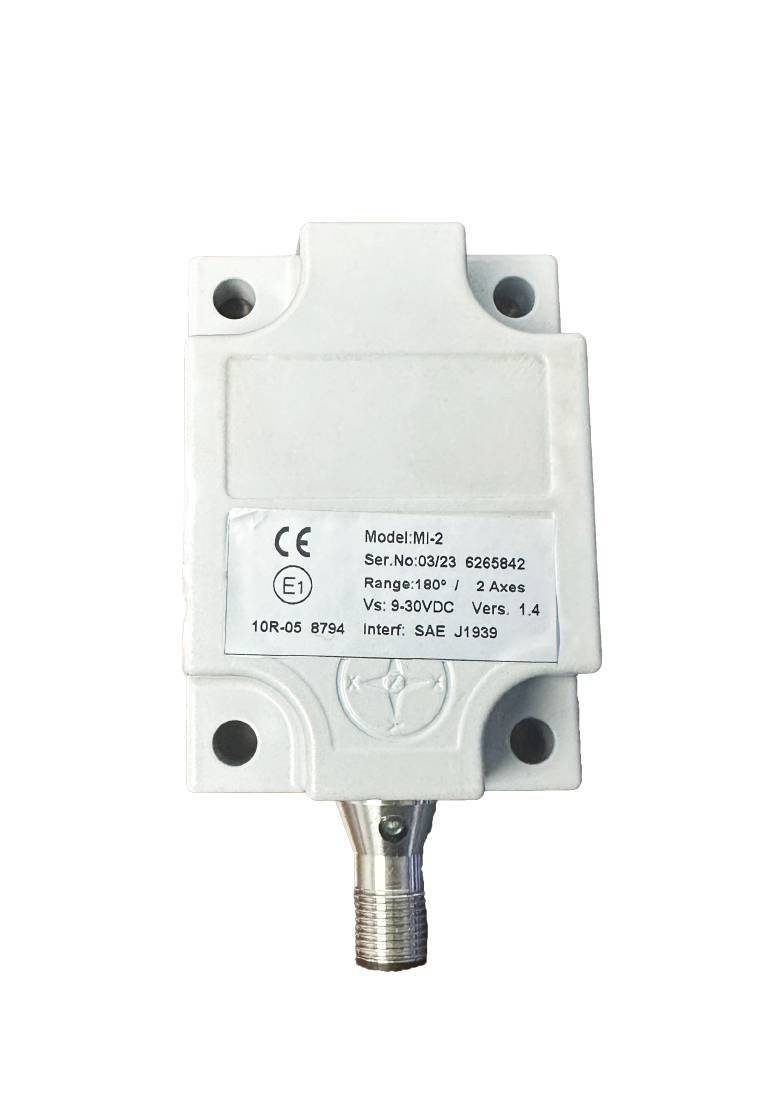

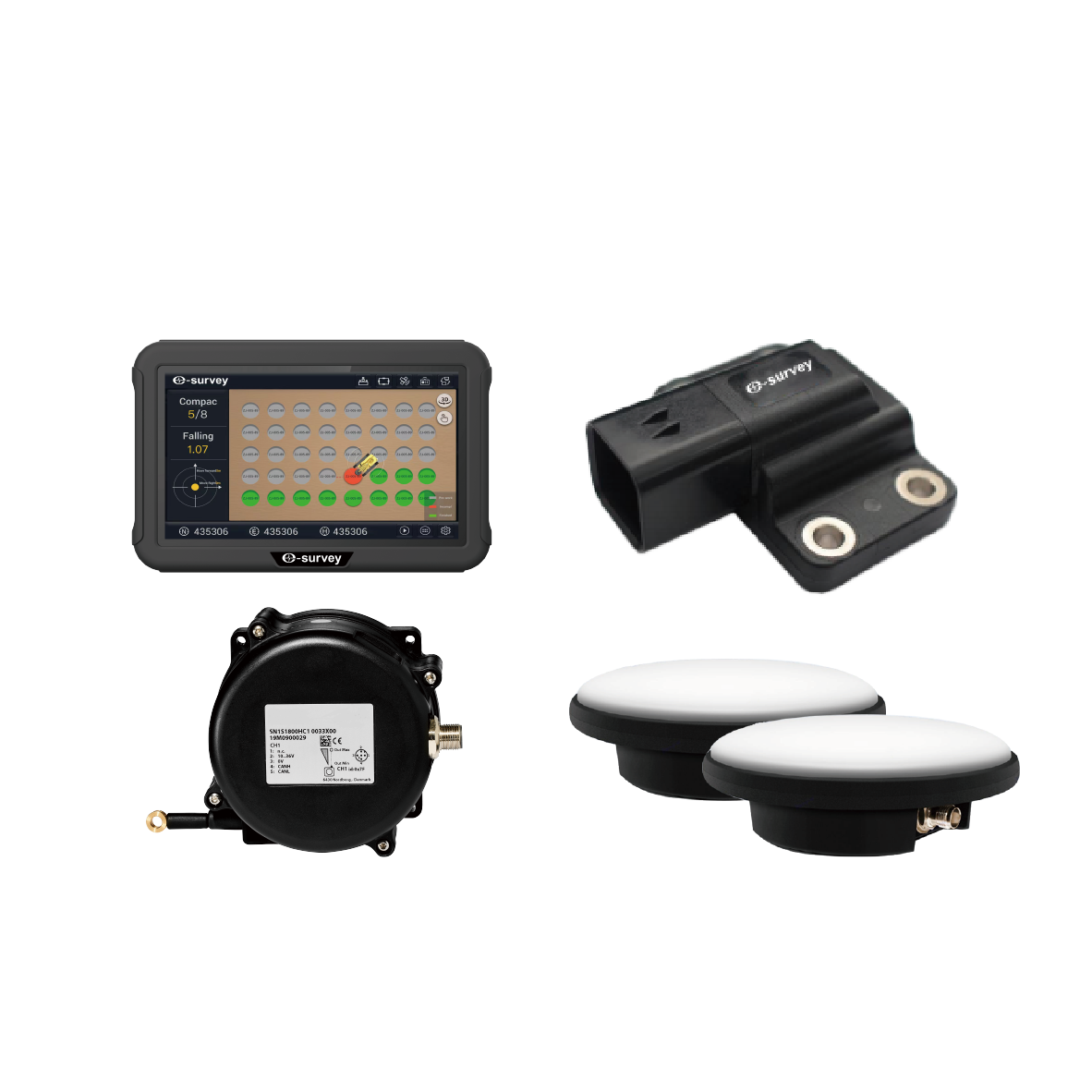

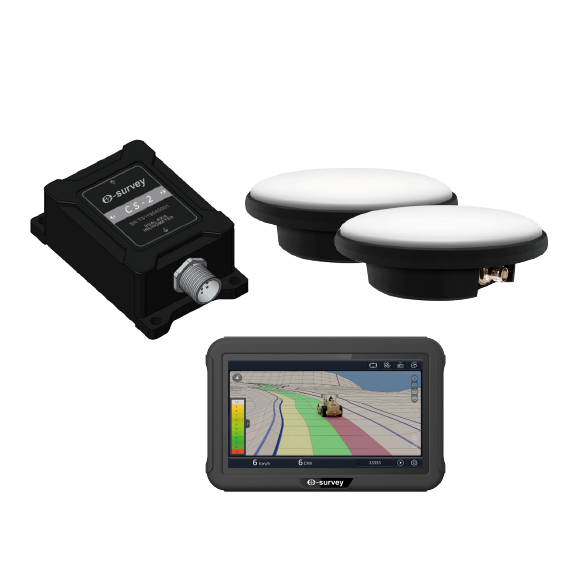

Apply the eME10 even under harsh environmental conditions (like dust, mud, rain, extreme heat, and cold) for many years, with the rugged design of the display, GNSS receiver, positioning antenna, heading antenna, and tilt sensors.

Intuitive Software: Easy-to-use

View the 3D model in real-time for reference with the optimized interface full of colorful graphics and natural interactions for ease of use and productivity.
