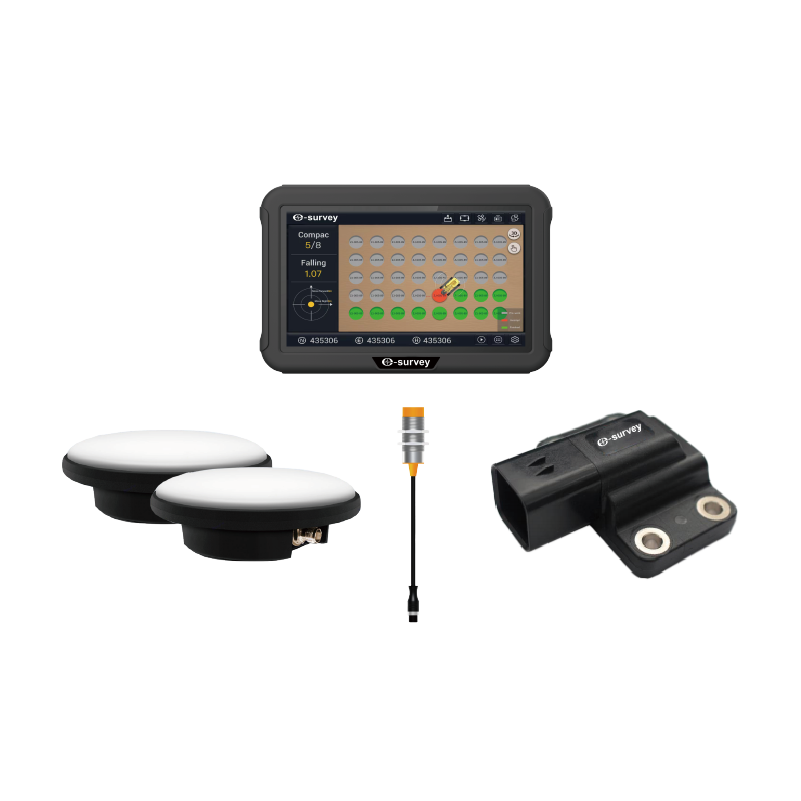

The eMP10 system adopts multi-satellite system high-precision real-time positioning and orientation, as well as multi-sensor fusion technology, to obtain accurate three-dimensional position information of the pile head; Collect real-time data from sensors installed on the pile foundation, such as current sensors and grout volume sensors; Able to capture digital and image files to assist the machine operators in precise construction.
Contact Us NowSupported Platforms
Connect with a digital construction management platform for two-way data transmission; Remote quality and progress management.
Data Intuition
Load the pile point design file and visualize the plan.
Quick Guiding
Pile point guiding to the pile is precise and quick with the pile head orientation data.
Data Monitoring
Real-time depth monitoring for drilling and piles.
Error Monitoring
Track the pile frame's tilting conditions from the beginning to the present, and display the overall verticality deviation in real time.
Power Supply Monitoring
Monitor the real-time value of drilling current in the drilling rig while drilling, and record any abrupt change in the holding layer.
In-construction Inspection
Real-time monitoring of drilling speed.
Adaptable
Strong R&D capabilities; Support a variety of piling machinery: static pile, CFG long auger drilling rig, cement mixing pile, photovoltaic piling rig, rotary drilling rig, down the hole drilling rig, drainage sheet pile, and rotary spraying pile.
