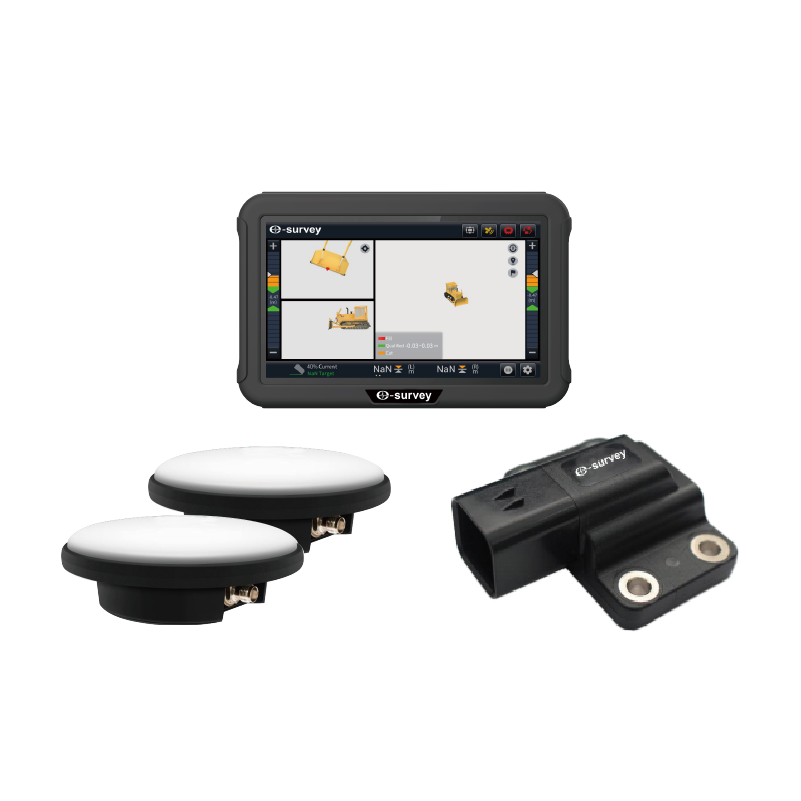

The eMB10 integrates multi-constellation precision positioning, sensor fusion, and real-time 3D guidance for bulldozer blade guidance or control. Using 3D data as a reference, the system rapidly meets design specs without traditional surveying. The system enables round-the-clock operation by any operator, hence ensuring speedy and accurate task completion, reducing rework, and enhancing productivity and project profits.
Contact Us NowFlexibility
Support global coordinate library, suitable for global users, and provide multilingual versions. Support Athena engine RTK and L-Band China accuracy; Even without the base station, the intelligent receiver can reach centimeter-level accuracy. Support network differential.
Convenient Operation
Sound prompts, such as operation and danger warning prompts, etc. Graphical and numerical indication of the relative position of the actual shovel blade and the design surface. 3D visual guidance is intuitive and easy to understand, improving the smoothness of the working surface and ensuring rapid molding. Work accurately even at night when the field of vision is limited. Support online version updates and quick registration.
Support the generation of design files on the client side for faster construction. Support the import and export of coordinate conversion parameters and calibration files to speed up the system calibration process. Multiple calibration files can be stored and switched.
Real Validity
Self-innovation technology achieves system accuracy of 3cm RMS.The digital construction management platform enables two-way transmission of design documents, construction tasks, and data to the cloud in real-time. The data is real and effective for managing remote quality and progress visualizations.
Site Safety
Stakeless construction enhances the safety of the construction site. Electronic fence improves site safety.
Precise and efficient. Reduce the driving requirements. Support rapid construction molding and quality control.
Manual and automatic control modes can be effortlessly switched.
