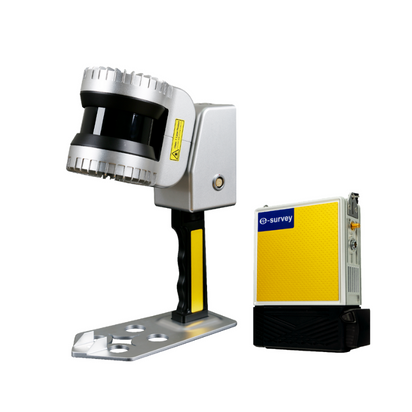

eHLS1

Handheld LiDAR Scanner

The eSurvey eHLS1 is the first portable handheld laser scanner independently designed and manufactured by eSurvey GNSS. It is lightweight, flexible, and easy to operate. Adopting the new high-precision SLAM technology, it can create a 3D reconstruction of the environment indoors and outdoors without depending on GNSS positioning, and help professionals to achieve centimeter-level point cloud data while walking. With the self-researched eSCAN processing software, effective post-process of point cloud data and multiple applications of point cloud becomes possible.

Contact Us Now

Fast Scanning Speed

Its scanning speed can be up to 655,000 points per second.

Portable and Efficient

Compact and portable. Capture 3D point cloud data efficiently while moving around.

High Data Accuracy

More high-precision 3D point cloud data can be obtained, supported by the new high-precision SLAM algorithm.

Impressive Memory Storage

It is equipped with a 1T solid-state disk.

Real-Time Data Visualization

Visualize data in real-time with a smartphone or tablet.

Multi-platform Supported

It can be expandable to multiple platforms, including a backpack, vehicle, intelligent robot, etc.

Specifications

Range

120 m

LiDAR channels

32

Points per second

655,000

Laser product classification

Level 1

Laser wave length

865 nm

FOV

360° x 270°

Scanning accuracy

3-5 cm

Data format

DAT, PCD

Dimension

Handheld: 295 mm x 197 mm x 99.7 mm (with handle)

Host: 128 mm x 185 mm x 52 mm

Weight

Handheld: 1.6 kg (with handle)

Host: 1.0 kg (without battery)

Housing

Aircraft-grade aluminium

(high protection and high interference resistance)

Power Supply 12 - 24 V dc/25 W
Working time3 hours (one battery)
Storage 1T (expandable)
Working EnvironmentIndoor and Outdoor
Working Temperature-20℃ - 60℃
Protection LevelIP54



  • eHLS1 Datasheet-V2.1-ENG.pdf
