The eSurvey NET10 is specially designed for user who needs to set up reference stations. With the 3D choke-ring antenna, the device provides stable correction data to the rover. Integrated with Bluetooth, WIFI, Web UI, ethernet and serial port, NET10 brings possibility for more applications.
1.
Multi-constellation
and Multi-frequency
With 800
channels of GNSS tracking, NET10 covers all GNSS signals including GPS, BDS,
GLONASS, GALILEO and IRNSS, QZSS to provide stable and reliable data source.
2.
Easy for installation
and configuration
NET10 is designed to be small but efficient. The small and simple body decrease the
operation difficulty. Operator will master the process with quick training.
3.
Large
Memory Storage
The
internal 32 GB storage ensure user to store the data for long time. It also
supports FTP push to make it more convenient for data management.
4.
L-Band Atlas
Atlas is a
service to provide global precision correction service over L-band satellites.
With ATLAS subscription, NET10 is able to achieve centimeter accuracy
without any correction data.
5.
Web UI
It is able
to view position status, configurate device, download data and update firmware
from Web user interface with any phone, tablet or PC.
6.
Smart Alert
It will
alert user through email once the charger is disconnected, battery level is too
low, temperature is too high or memory storage is almost full.
7.
Rugged
Design
NET10 main body
is using aluminum alloy materials to provide strong shock and vibration
resistant characteristics. IP67 certification ensures operation in various of
tough environments.

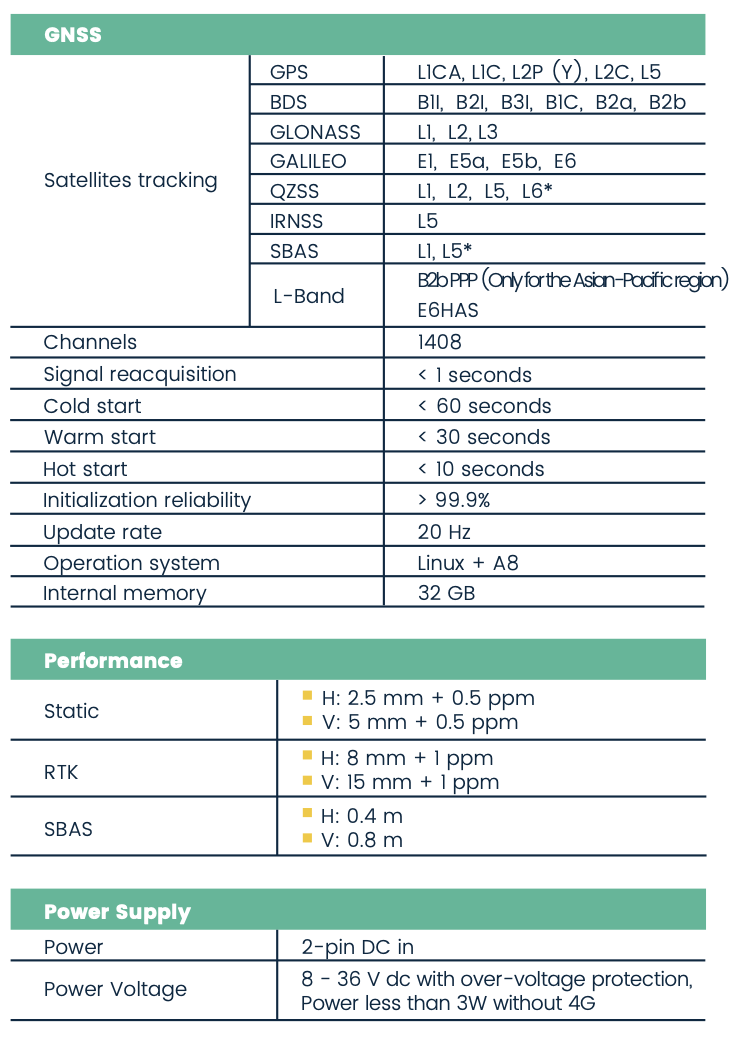

GNSS
|
NET10 |
|
Satellites tracking |
GPS |
L1CA, L2P (Y),
L2C, L5 |
BDS |
B1I, B2I,
B3I, B1C, B2a,
B2b* |
|
GLONASS |
L1, L2 |
|
GALILEO |
E1, E5a, E5b,
E6* |
|
QZSS |
L1, L2,
L5, L6* |
|
IRNSS |
× |
|
SBAS |
L1, L5 |
|
L-Band |
B2b PPP (Only for the
Asian-Pacific region) |
|
Channels |
1408 |
|
Signal reacquisition |
< 1 second |
|
Cold start |
< 60 seconds |
|
Warm start |
< 30 seconds |
|
Hot start |
< 10 seconds |
|
RTK signal initialization |
< 5 seconds |
|
Initialization reliability |
> 99.9% |
|
Update rate |
20 Hz |
|
Operation System |
Linux + A8 |
|
Internal memory |
32G |
|
External memory |
x |
|
Performance |
||
Static |
H: 3 mm + 0.5 ppm (RMS) V: 5 mm + 0.5 ppm (RMS) |
|
RTK |
H: 8 mm + 1 ppm V: 15 mm + 1 ppm |
|
DGPS |
x |
|
SBAS |
H: 0.4 m V: 0.8 m |
|
L-Band |
x |
|
1PPS |
x |
|
Power Supply |
||
Battery |
x |
|
Power |
2-pin DC in |
|
Power Voltage |
8 - 36 V dc with over-voltage protection
Power less than 3W without 4G |
|
Charging time |
x |
|
Internet
Modem |
||
Support band |
x |
|

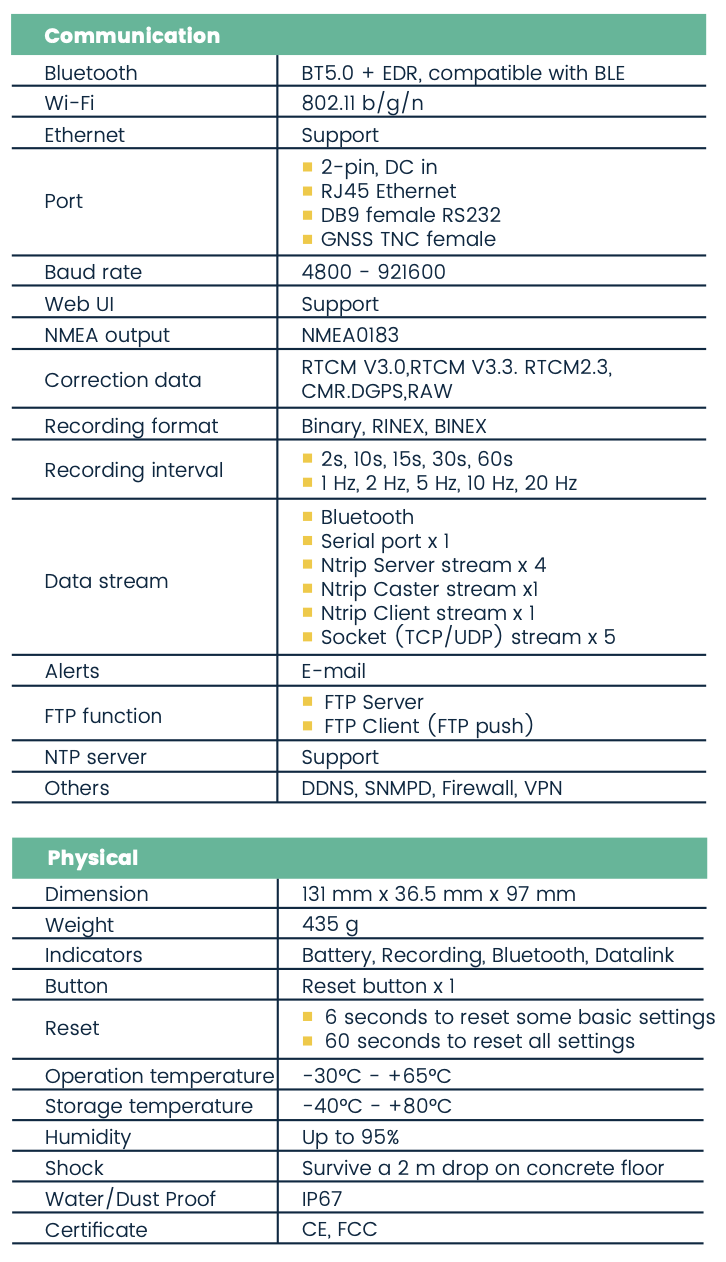

Communication |
||
Bluetooth |
BT5.0 + EDR, compatible with BLE |
|
Wi-Fi |
802.11 b/g/n |
|
Ethernet |
√ |
|
Port |
- 2-pin, DC in - RJ45 Ethernet - DB9 female RS232 - GNSS TNC female |
|
Baud rate |
4800 - 921600 |
|
WEB UI |
√ |
|
NMEA Output |
NMEA0183 |
|
Correction Data |
RTCM V3.X, RTCM2, CMR |
|
Recording Format |
Binary, RINEX, BINEX |
|
Recording Interval |
- 2s,10s,15s, 30s, 60s - 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz |
|
Data Stream |
Bluetooth Serial port x 1 Ntrip sever stream x 4 Ntrip Caster stream x1 Ntrip client stream x 1 Socket (TCP/UDP) stream x 5 |
|
Alerts |
E-mail |
|
FTP Function |
- FTP server - FTP client (FTP push) |
|
NTP Server |
Support |
|
Others |
DDNS, SNMPD, Firewall, VPN |
|
Physical |
||
Dimension |
131 mm x 36.5 mm x 97 mm |
|
Weight |
435 g |
|
Screen |
x |
|
Indicators |
Power, satellite, recording,
datalink |
|
Button |
Reset button x 1 |
|
Reset |
- 3 seconds to reset some basic
settings - 60 seconds to reset all
settings |
|
Operation Temperature |
-30°C - +65°C |
|
Storage Temperature |
-40°C - +80°C |
|
Humidity |
Up to 95% |
|
Shock |
Survive a 2 m drop on concrete
floor |
|
Water/Dustproof |
IP67 |
|
Certificate |
x |
