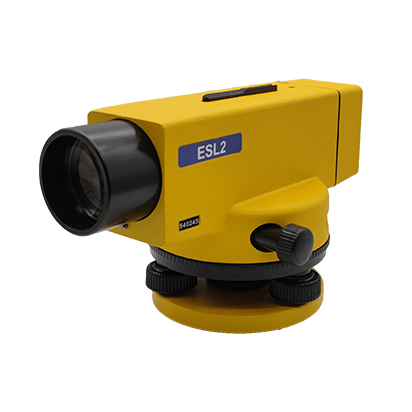

ESL2

Precise Automatic Level

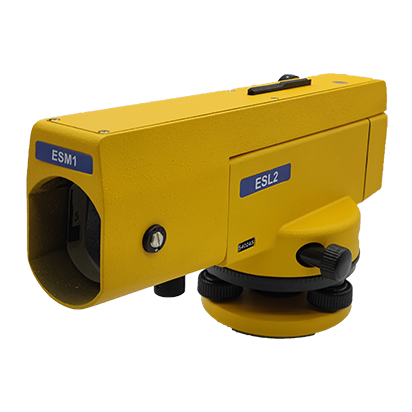

ESL2 is used in geodetic control, construction of roads and industrial applications. The ESL2 with ESM1 can supply higher accuracy and be used in monitoring structural deformation etc. The use of automatic compensator speeds up work and improves accuracy. ESL2 supply the possibility to operate in the temperature from -30℃ to +50℃.

1.      Equipped with a press button for compensator checking.

2.      Dismountable eyepiece and assorted accessories such as Diagonal Eyepieces.

3.      Adopt crossing suspender frame and compen­sator of air damper.

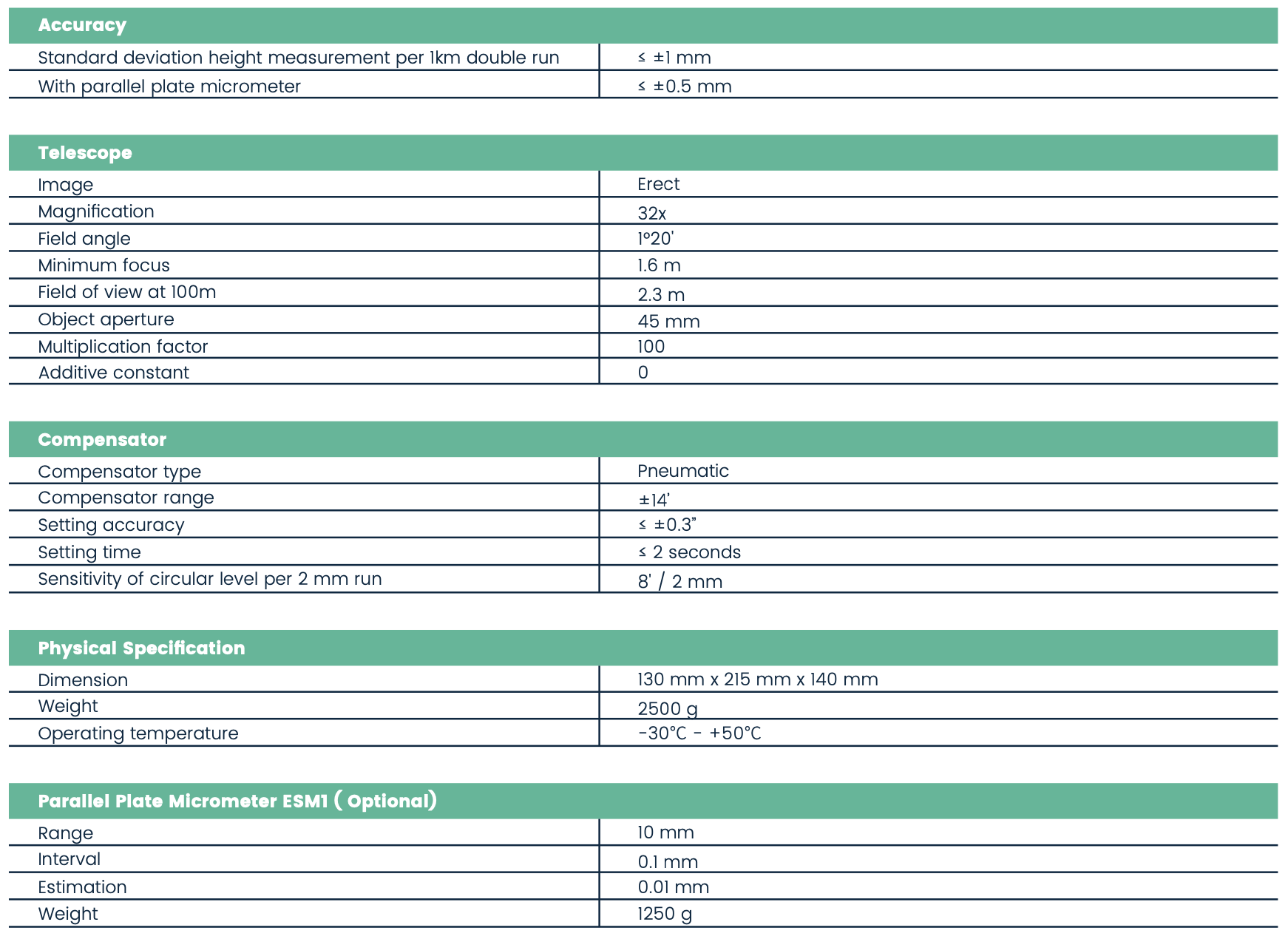

Accuracy

1Km Error

≤ ±1 mm

With ESM1

≤ ±0.5 mm



Telescope


Erect

Magnification

32x

Field Angle

1°20'

Minimum Focus

1.6 m

Field of View at 100m

2.3 m

Object Aperture

45 mm

Multiplication Factor

100

Additive Constant

0





Compensator

Compensator Type

Pneumatic

Compensator Range

±14’

Setting Accuracy

≤±0.3”

Setting Time

≤ 2 s

Sensitivity of Circular Level Per 2mm Run

8’ /2 mm





Physical Specification

Dimension

130 x 215 x 140 mm

Weight

2.5 Kg

Operating Temperature

-30℃ ~ +50℃





Parallel Plate Micrometer ESM1 ( Optional accessory)

Range

10 mm

Interval

0.1 mm

Estimation

0.01 mm

Weight

1.25 Kg




  • ESL2_User Manual_20210402_v1.0.pdf
  • ESL2 Datasheet-V2.0-ENG.pdf
