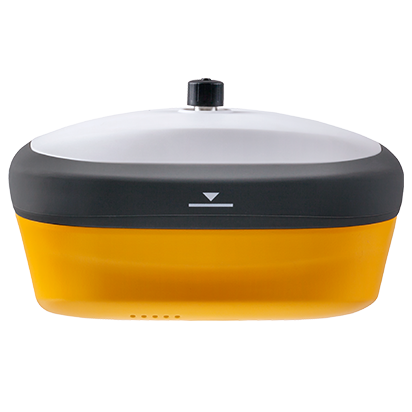

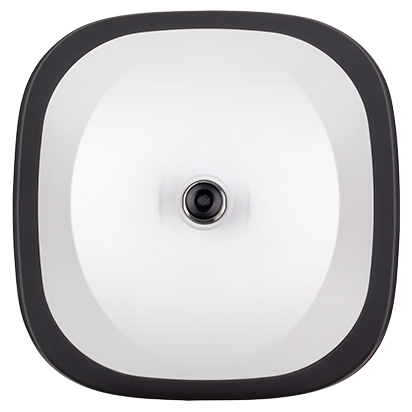

The E800 is a high-performance GNSS receiver that provides an easy-to-use solution for survey professionals who need to collect highly accurate data in a wide range of applications. The durable IP67 design makes it possible to work in extreme environments. The colorful touch screen is convenient for quick configurations.
5-Watt Internal Radio: Longer Working Distance
No longer need to carry external radio, for its internal radio's working distance can reach 10 - 15 km.
Impressive Battery Life: Longer Working Time
Work up to 15 hours and no longer worry about a day's work, with its 13600 mAh battery, which makes your data save safely.

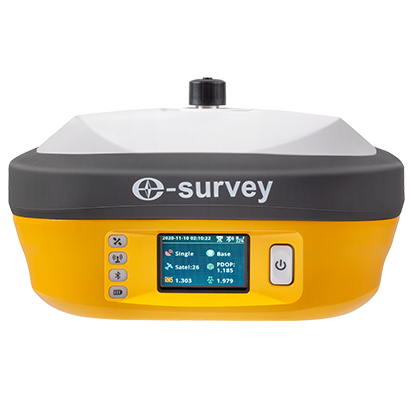

1.45-inch Display: Colorful and Touchable
View the primary status and basic information, set the work mode, and operate the device, facilitating more convenient and direct human-computer interaction.
RTK Assistant Technology: Uninterrupted Work
Work without interruption even when RTK corrections fail, powered by our RTK assistant technology.
Max 60° Tilt Survey: A Different Way of Working
üQuickly measure
accurate points while standing or walking without leveling the pole.
üConcentrate on
where the pole tip needs to go, which is especially useful during a stakeout.
üEasily start a
survey in environments that are hard to reach, such as building corners and
slopes.
üNo longer worry
about the movement of the pole when measuring, provided that the pole tip is stationary.
Model |
E800 - H |
E800 - U |

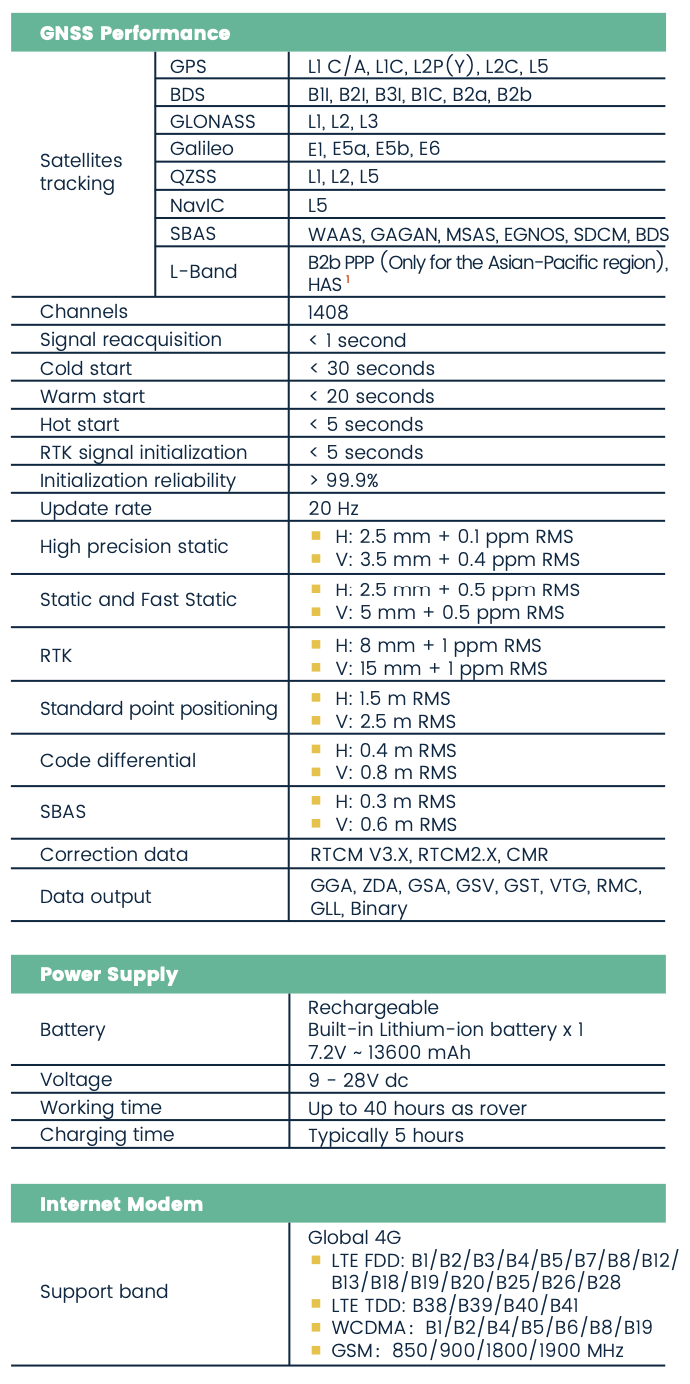

GNSS Performance |
||
Satellites Tracking |
GPS: L1CA/L1P/L1C/L2P/L2C/L5 BDS: B1I/B2I/B3I/B1C/B2a/B2b/
ACEBOC GLONASS: G1/G2/G3, P1/P2 GALILEO: E1/E5a/E5b/E6/ALTBOC QZSS: L1CA/L1C/L2C/L5/LEX IRNSS:
L5 SBAS1: L1/L5 L-Band: Atlas H10/H30/Basic |
GPS: L1CA/L2P(Y)/ L2C/L5 BDS: B1I/B2I/B3I/B1C/B2a/B2b/ GLONASS: L1/L2 GALILEO: E1/E5a/E5b/E6/ QZSS: L1/L2/L5/L6 L-Band: B2b PPP (Only for the Asian-Pacific region) |
Channels |
800 |
1408 |
Cold Start |
< 10 seconds |
< 30 seconds |
Warm Start |
< 10 seconds |
< 20 seconds |
Hot Start |
< 10 seconds |
< 5 seconds |
RTK Signal Initialization |
< 8 seconds |
< 5 seconds |
Initialization Reliability |
> 99.9% |
|
Update Rate |
10 Hz standard, up to 50 Hz |
20 Hz |
High precision static |
H: 2 mm + 0.1 ppm V: 3 mm + 0.4 ppm |
H: 2.5 mm + 0.5 ppm RMS V: 5 mm + 0.5 ppm RMS |
RTK |
H: 8 mm + 1 ppm V: 15 mm + 1 ppm |
H: 8 mm + 1 ppm RMS V: 15 mm + 1 ppm RMS |
Standard point positioning |
- |
H: 1.5 m RMS V: 2.5 m RMS |
Code differential |
H: 0.25 m V: 0.45 m |
H: 0.4 m RMS V: 0.8 m RMS |
Correction data |
CMR, CMR+, RTCM2, RTCM3, RTCM32 |
RTCM V3.X, RTCM2, CMR |
Data output |
GGA, ZDA, GSA, GSV, GST, VTG, RMC, GLL, Binary |
GGA, ZDA, GSA, GSV, GST, VTG, RMC, GLL, Binary |
SBAS |
H: 0.3 m V: 0.6 m |
- |
L-Band |
Atlas H10: 4 cm RMS Atlas H30: 15 cm RMS Atlas Basic: 30 cm RMS |
- |
Power Supply |
||
Battery |
Rechargeable Built-in Lithium-ion battery x 1 7.2V ~ 13600 mAh |
|
Voltage |
9 - 28V dc |
|
Working time |
15 hours |
|
Charging time |
Typically 5 hours |
|
Internet Modem |
||
Supported band |
Global GSM /WCDMA/LTE |
Global 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 LTE TDD: B38, B39, B40, B41 UMTS: B1, B2, B4, B5, B6, B8, B19 GSM: B2, B3, B5, B8 |

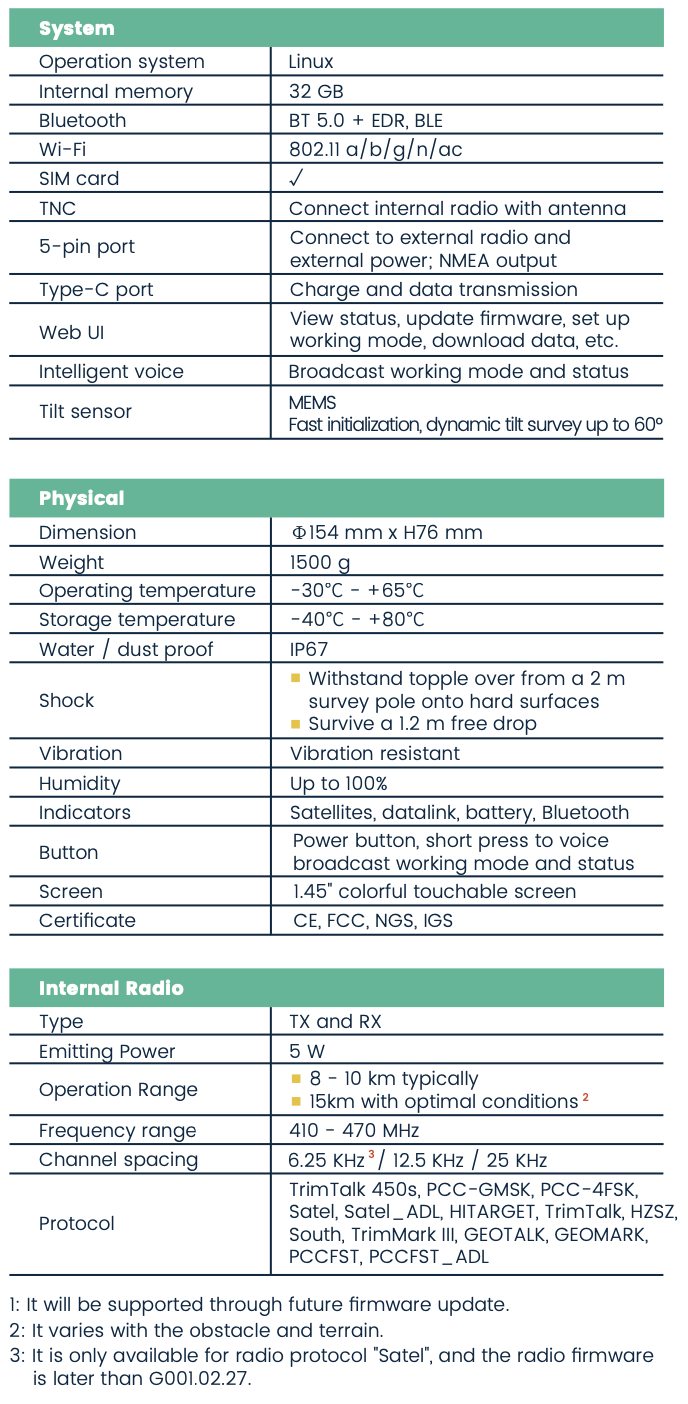

System |
||
Operation system |
Linux |
|
Internal memory |
32 GB |
|
Bluetooth |
BT5.0+EDR, BLE |
|
Wi-Fi |
802.11 a/b/g/n/ac |
|
SIM card |
yes |
|
TNC |
Connect internal radio with antenna |
|
5-pin port |
Connect to external radio and power, the NMEA output |
Connect to external radio and external power |
Type-C port |
Charge and internal storage access |
Charge and data transmission |
Web UI |
View status, update firmware, set up working mode, download data, etc. |
|
Intelligent voice |
Broadcast working mode and status |
|
MEMS |
Fast initialization, dynamic tilt survey up to 60° |
|
Physical |
||
Dimension |
Φ154 mm x H76 mm |
|
Weight |
1500 g |
|
Operating Temperature |
-30℃ ~ +65℃ |
|
Storage Temperature |
-40℃ ~ +80℃ |
|
Water/Dust Proof |
IP67 |
|
Shock |
Withstand topple over from a 2 m survey pole onto hard surfaces Survive a 1.2 m free drop |
|
Vibration |
Vibration resistant |
|
Humidity |
Up to 100% |
|
Indicators |
Satellites, datalink, battery, Bluetooth |
|
Button |
The power button, short press to voice broadcast status working mode and status |
|
Screen |
1.45" colorful touchable screen |
|
Certificate |
CE, FCC, NGS |
|
Internal Radio |
||
Type |
TX and RX |
|
Emitting Power |
5 W |
|
Operation Range |
8 - 10 km typically 15 km with optimal conditions² |
|
Frequency range |
410 - 470 MHz |
|
Channel spacing |
12.5 KHz / 25 KHz |
6.25 KHz³ /
12.5 KHz / 25 KHz |
Protocol |
Satel, PCC, TrimTalk, TrimMark III, South, HiTarget |
Satel, PCC, TrimTalk, TrimMark III, |
