Model
|
E200 - H
|
E200 - U
|
|
GNSS Performance
|
|
Satellites Tracking
|
GPS: L1CA/L1P/L1C/L2P/L2C/L5 BDS: B1I/B2I/B3I/B1C/B2a/B2b/
ACEBOC GLONASS: G1/G2/G3, P1/P2 GALILEO: E1/E5a/E5b/E6/ALTBOC QZSS:
L1CA/L1C/L2C/L5/LEX IRNSS: L5 SBAS1 : L1, L5 L-Band: Atlas H10/H30/Basic
|
GPS: L1CA/ L2P(Y)/ L2C/ L5
BDS: B1I, B2I, B3I,
B1C, B2a, B2b
GLONASS: L1, L2
GALILEO: E1, E5a, E5b, E6
QZSS: L1, L2, L5, L6
L-Band: B2b PPP (Only
for the Asian-Pacific region)
|
|
Channels
|
800
|
1408
|
|
Cold Start
|
< 60 seconds
|
< 30 seconds
|
|
Warm Start
|
< 30 seconds
|
< 20 seconds
|
|
Hot Start
|
< 10 seconds
|
< 5 seconds
|
|
RTK Signal Initialization
|
< 8 seconds
|
< 5 seconds
|
|
Initialization Reliability
|
> 99.9%
|
|
Update Rate
|
10 Hz standard, up to 50 Hz
|
20 Hz
|
|
High precision static
|
H: 2 mm + 0.1 ppm
V: 3 mm + 0.4 ppm
|
H: 3 mm + 1 ppm RMS
V: 5 mm + 1 ppm RMS
|
|
RTK
|
H: 8 mm + 1 ppm
V: 15 mm + 1 ppm
|
H: 8 mm + 1 ppm RMS
V: 15 mm + 1 ppm RMS
|
|
Standard point positioning
|
-
|
H: 1.5 m RMS
V: 2.5 m RMS
|
|
Code differential
|
H: 0.25 m
V: 0.45 m
|
H: 0.4 m RMS
V: 0.8 m RMS
|
|
Correction data
|
CMR, CMR+, RTCM2, RTCM3, RTCM32
|
RTCM V3.X, RTCM2, CMR
|
|
Data output
|
GGA, ZDA, GSA, GSV, GST, VTG, RMC, GLL, Binary
|
GGA, ZDA, GSA, GSV, GST,
VTG, RMC, GLL, Binary
|
|
SBAS
|
H: 0.3 m
V: 0.6 m
|
-
|
|
L-Band
|
Atlas H10: 4 cm RMS
Atlas H30: 15 cm RMS
Atlas Basic: 30 cm RMS
|
-
|
|
Power Supply
|
|
Battery
|
Rechargeable
Built-in Lithium-ion battery x 1
7.2V ~ 6900 mAh
|
|
Voltage
|
9 - 28V dc
|
|
Working time
|
RTK: 10 hours
Static: 14 hours
|
|
Charging time
|
Typically 4 hours
|
|
Internet Modem
|
|
Supported band
|
Global GSM /WCDMA/LTE
|
Global 4G
LTE FDD: B1, B2, B3, B4, B5, B7, B8,
B12, B13, B18, B19, B20, B25, B26, B28
LTE TDD: B38, B39, B40, B41
UMTS: B1, B2, B4, B5, B6, B8, B19
GSM: B2, B3, B5, B8
|
|

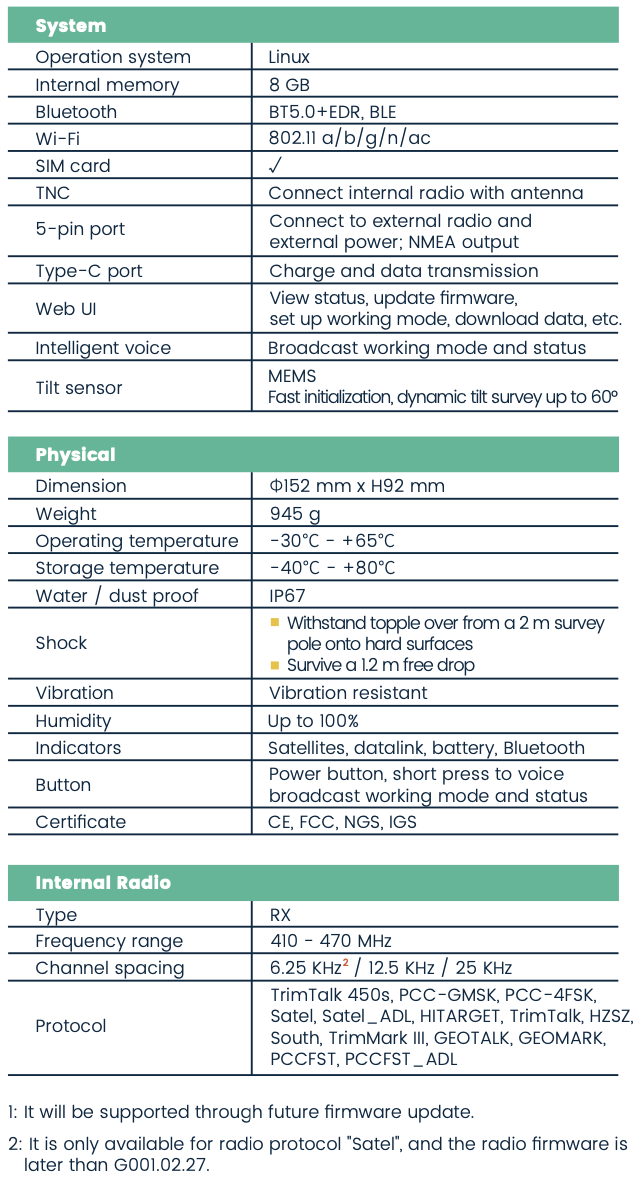

System
|
|
Operation system
|
Linux
|
|
Internal memory
|
8 GB
|
|
Bluetooth
|
BT5.0+EDR, BLE
|
|
Wi-Fi
|
802.11 a/b/g/n/ac
|
|
SIM card
|
yes
|
|
5-pin port
|
Connect to external radio and external power
|
|
Type-C port
|
Charge and data transmission
|
|
Web UI
|
View status, update firmware,
set up working mode, download data, etc.
|
|
Intelligent voice
|
Broadcast working mode and status
|
|
MEMS
|
Fast initialization, dynamic tilt survey up to
60°
|
|
Physical
|
|
Dimension
|
Φ152 mm x H92 mm
|
|
Weight
|
915 g
|
|
Operating Temperature
|
-30℃ ~ +65℃
|
|
Storage Temperature
|
-40℃ ~ +80℃
|
|
Water/Dust Proof
|
IP67
|
|
Shock
|
Withstand topple over from a 2 m survey
pole onto hard surfaces
Survive a 1.2 m free drop
|
|
Vibration
|
Vibration resistant
|
|
Humidity
|
Up to 100%
|
|
Indicators
|
Satellites, datalink, battery, Bluetooth
|
|
Button
|
The power button, short press to voice broadcast status
working mode and status
|
|
Certificate
|
CE, FCC, NGS
|
|
Internal Radio
|
|
Type
|
RX
|
|
Frequency type
|
410 - 470 MHz
|
|
Channel spacing
|
12.5 KHz / 25 KHz
|
6.25 KHz / 12.5 KHz / 25 KHz
|
|
Protocol
|
Satel, PCC, TrimTalk, TrimMark III, South,
HiTarget
|
Satel, PCC, TrimTalk, TrimMark III,
TRANSEOT(PCC-GMSK), South, HiTarget, GEOTALK, GEOMK3, HZSZ
|
