GNSS.NET Reference Data Process Center

Reference Station Management

Communication

Serial port, TCP server, TCP client, Ntrip client

Station Coordinate

Manual input

Station Coordinate Type

Geocentric coordinate, Geodetic coordinate

Export Stations

KML, DAT

Export Configuration

Support

Station Number

At least 5 stations, depend on the subscription

System Setting

Virtual Reference Station

Support

Nearest Reference Station

Support

Recording Observation

Support

Network Configuration Parameter

Supported Parameters

Maximum distance between stations

Minimum distance between stations

Range of physical base station

Virtual base station network expansion distance

Data Format

Supported Constellation

GPS, BDS, GLONASS, Galileo

Supported Formats

CMR, RTCM2, RTCM23, RTCM31, RTCM32 MSM4

Broad Ephemeris

Support

Precise Ephemeris

Support

Station View

Station Satellite Map

Support

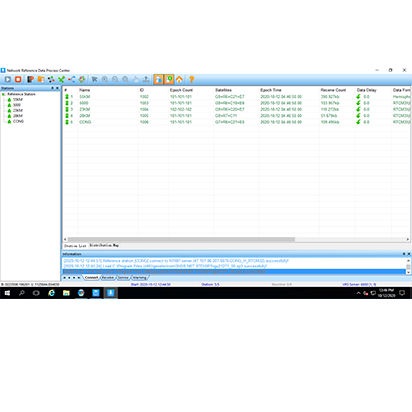

View Stations in List

Support

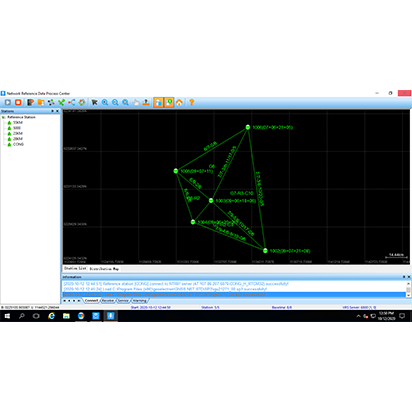

View Stations in Map

Support

Support measuring distance

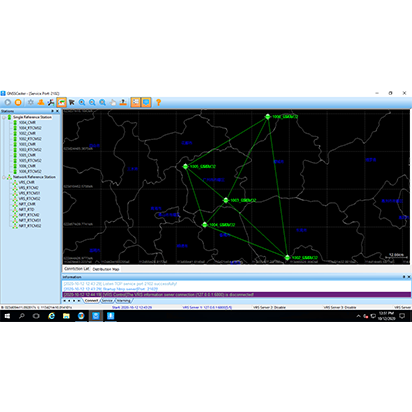

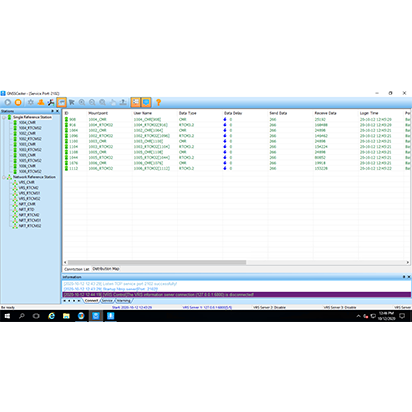

GNSSCaster

GNSSCaster Function

User Number

No limitation

User Authentication

Support

GGA Track Log

Support

Coordinate System over RTCM

RTCM1021~1027

Coordinate System Parameter

Ellipsoid parameter

Projection parameter

Seven parameters

Geoid parameters
