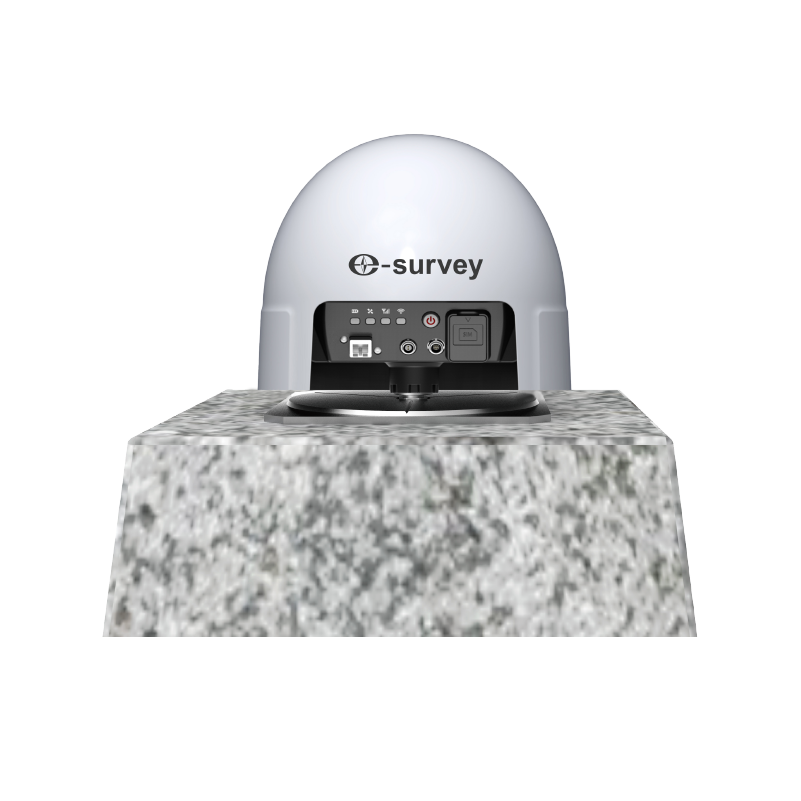

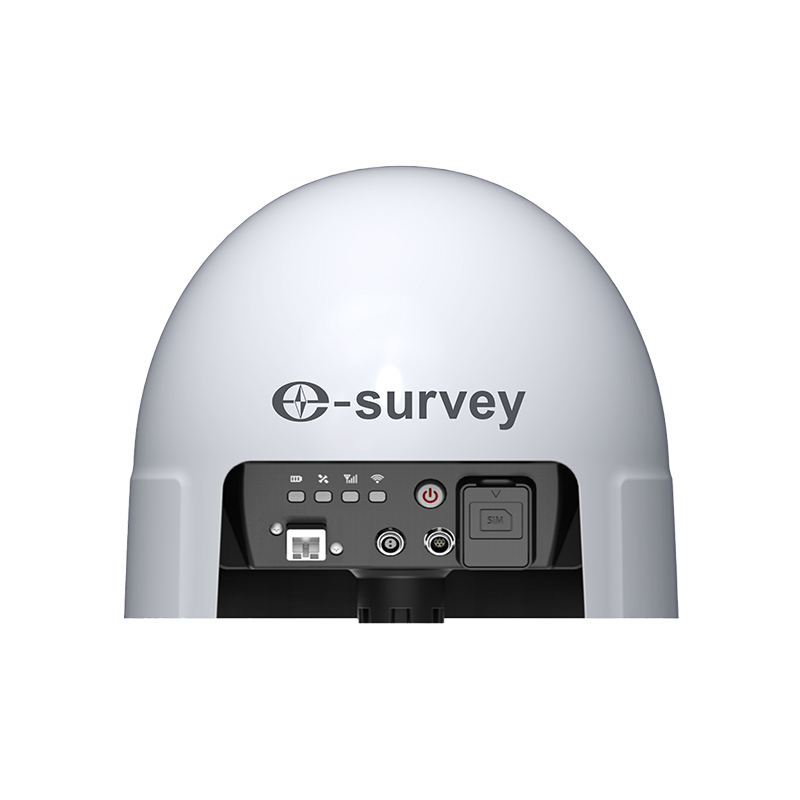

Independently designed and developed by eSurvey GNSS, the eSurvey eDMR1 features high stability, high reliability, and simple operation. It solves the problems of high cost and high deployment consumption of traditional GNSS monitoring equipment. It can be applied to monitoring the displacement and deformation of geological disasters and reservoir dams, etc., and provide all-weather high-quality monitoring results. The eDMR1 can collect data by simultaneously connecting to multiple sensors, like rainfall sensor, water level sensor, seepage, seepage pressure sensor, camera, etc., and transmit all collected data. It owns strong edge computing capability and supports local front-end static solutions. Benefiting from the built-in warning model based on multi-parameter calculation and analysis, it can realize front-end multi-parameter intelligent calculation, analysis, and warning forecast in situations, like extreme weather, no public network, etc.
Contact Us NowHigh Static Accuracy
Horizontal accuracy can be up to ±2.5 mm+0.5 ppm and vertical accuracy can be up to ±5 mm+0.5 ppm.
Multiple Communication Mode
It supports 4G, LoRa, Wi-Fi, RS485 and RJ45.
High Reliability
Protection level is IP68. Built-in large-capacity lithium battery which can support 25 hours continuous working in case of abnormal power outage.
Impressive Memory Storage
It owns internal 32GB on-board memory, which can store data more than 2 years. And its memory can be expanded to 512GB with an external memory card.
Independent Front-end Solution
With the built-in embedded solution engine, the eDMR1 can complete the dynamic and static solution. The solution results can directly access to the RTU/monitoring platform.
External Sensors
It supports monitoring sensors with RS485 modbus protocol to provide power and network for sensors. Support RTK function triggering through integrated MEMS.
