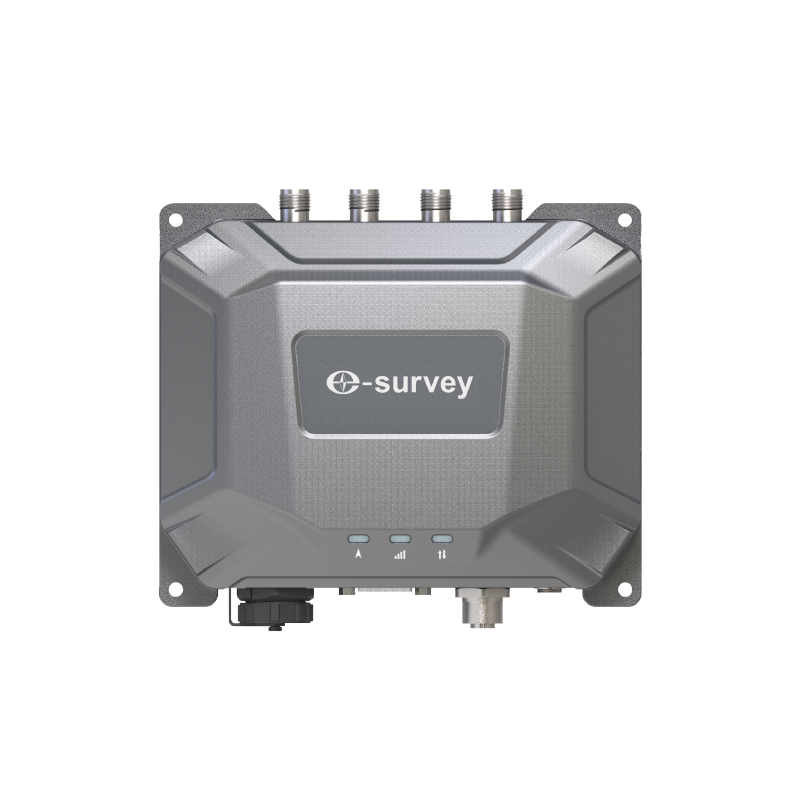

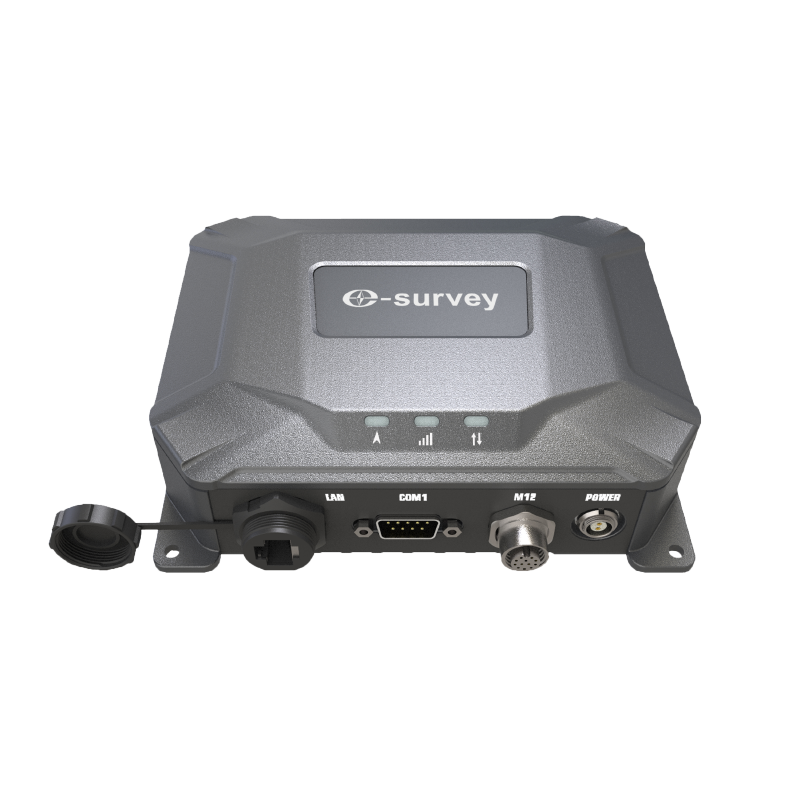

eHP10

eHP10

INDUSTRY DESIGN HEADING AND NAVIGATION GNSS RECEIVER

As a heading GNSS receiver, the eHP10 integrates dual-antenna, TX/RX radio, lora, serial port and 4G network, with a variety of working modes, suitable for Machine control, Marine survey, Geodesy and other industries.Due to its unique interface and internal design, the eHP10 greatly improves the waterproof and shock resistance performance, and can work stably in a variety of environments.

Dual Antenna: Heading and Navigation

Connect positioning and heading antennas to the eHP10 to output heading information and be used in scenarios with heading demands.

Richer Data Interface: Making Versatile Applications Possible

Enjoy multiple data interfaces, such as DB9 serial port, M12 serial port, 1PPS, CAN, Event, UHF, to various applications and etc., to conveniently facilitate synchronization with other devices.

Rugged Design: Designed for Harsh Environments

Drop it from a height of 1.5 m without any damage and enjoy a dustproof and waterproof rating of IP67, salt spray proof level of C4, mold proof level 1 to use it in all harsh vibration environments, such as vehicles and aviation, due to its simple and modular internal structure design.

Internal Radio/Lora

The eHP10 has internal radio and supports Satel, PCC, TrimTalk, Trimark III, South, and HiTarget radio protocols, ensuring it can work properly even in bad network conditions.

Rich Wireless Communication

The eHP10 supports Wi-Fi, Bluetooth, Ethernet, and SIM cards. Users can send or receive data through any method.

Suitable for Base and Rover

Its lightweight design makes the eHP10 perfect as a rover or base station for multiple applications.
