NET20 PLUS

NET20 PLUS

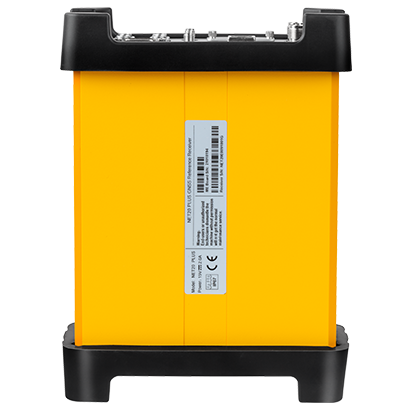

HIGH-PERFORMANCE GNSS REFERENCE STATION RECEIVER

The eSurvey NET20 PLUS is designed for high-precision CORS reference stations. With a 13600 mAh battery that can ensure continuous recording and respond to the emergency. Users can use any phone or tablet to configure devices easily from the powerful Web UI. The rich data interface demands various applications such as monitoring and machine control.

Multi-Constellation and Multi-Frequency: Powerful Satellite Tracking Capacity

Obtain all available and reliable data sources, with total channels and all signals (GPS, BDS, GLONASS, GALILEO, IRNSS and QZSS) of GNSS tracking.

Multiple Remote Administration Methods

Support frp to remote control

Users can remotely operate Web UI through the frp setting to achieve checking or change settings without going to the site.

Support FTP and SFTP

Users can set upload recording data to the FTP or SFTP server automatically or select the option on the download page.

OTA Update Function

Support the OTA function so the user can check the latest firmware and choose whether to upgrade it with only one click, instead of downloading the firmware and then uploading it to upgrade.

Complete Functional Continuous Operating Reference Station

Richer data interface

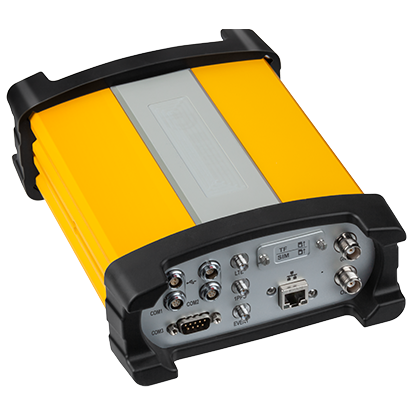

Enjoy multiple data interfaces, such as serial port, 1PPS, and event to various applications (e.g., meteorology), making versatile applications possible, such as monitoring and machine control.

Richer wireless communication

Enjoy multiple methods of sending and receiving data, including Wi-Fi, Bluetooth, Ethernet, external radio, and SIM card, which offers more possibilities for communication.

Visualization of Working Status

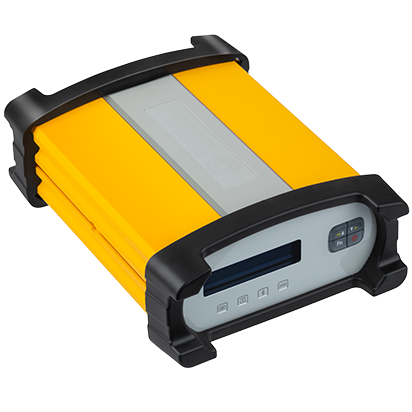

With a visual display screen, signal lights, and operation buttons, users can more conveniently know the current state of the NET20 Plus and make simple operations.

Safe and Reliable Continuous Operating Reference Station

Impressive battery life

Work up to 18 hours to respond to emergencies, such as power interruption, and no longer worry about a day's work; its 13600 mAh battery makes your data safe.

Upgraded smart alert

Receive an alert email and SMS once the charger is disconnected, the battery level is too low, the temperature is too high, or memory storage is almost complete.

Larger memory storage

Store the data for a longer time, supported by its internal 32 GB storage and TF card expansion, and manage data more conveniently, supported by FTP push.
