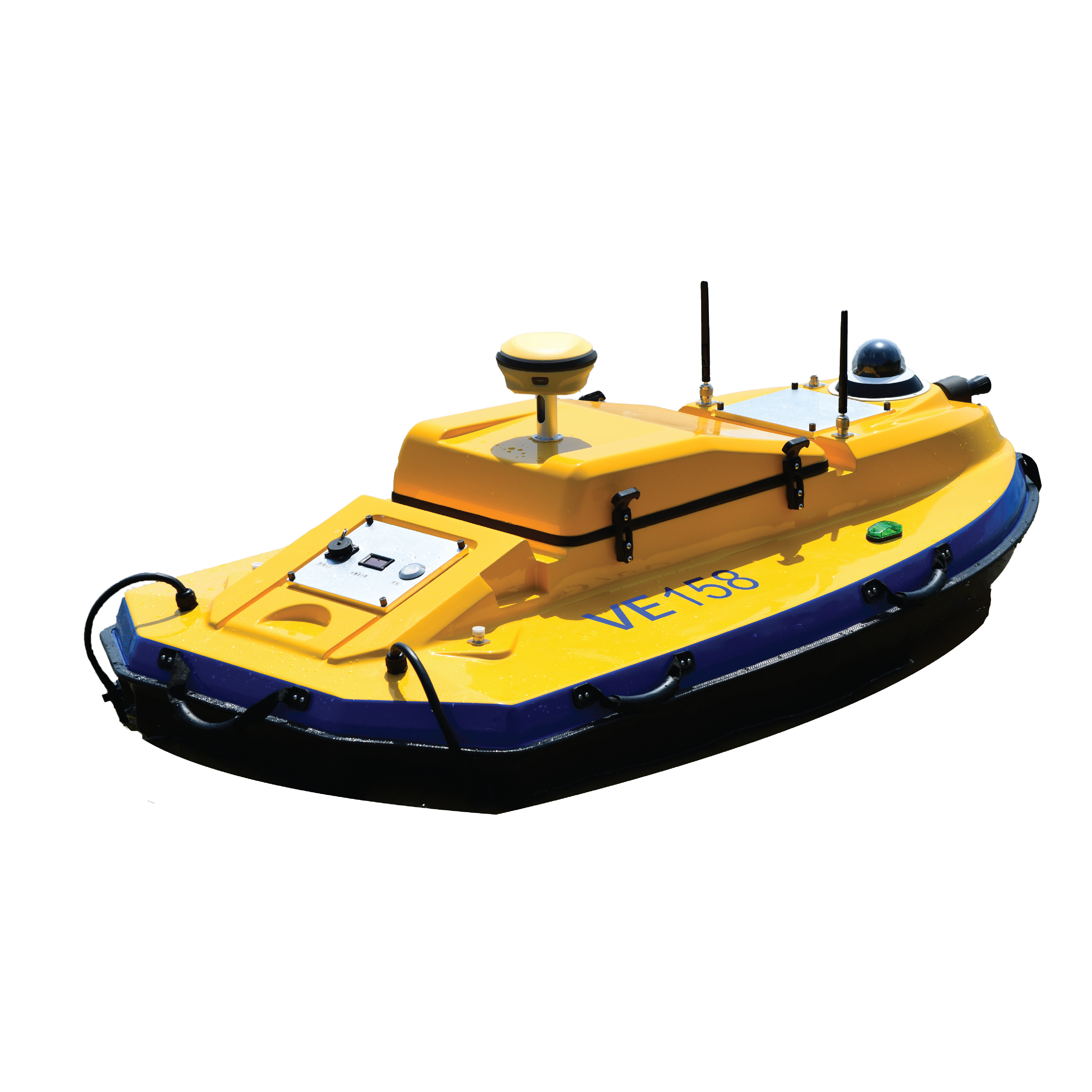

VE158

A MULTI-PURPOSE SURVEYING UNMANNED SURFACE VESSEL

Introducing the eSurvey VE158, a groundbreaking and fully integrated solution designed specifically for 3D bathymetric surveys. This innovative system has gained widespread recognition across a range of studies, including hydrology, seepage analysis, water quality studies, profiling streams and reservoirs, and managing reservoir and pond impoundment. The eSurvey VE158 boasts a meticulously engineered hull with a comprehensive sealing design. To ensure maximum protection, anti-collision strips have been strategically installed around the hull, providing resistance against sinking and corrosion. The body design is optimized for space efficiency, featuring a modular structure that is lightweight yet capable of carrying substantial loads.

Contact Us Now

Exceptional Hull Design

The unique M-type trimaran hull features a one-piece molding ceiling and is waterproof. The hull structure is modular and designed with a shallow draft, providing superior wave resistance and unbeatable stability. To ensure maximum durability and strength, the hull is brilliantly crafted out of Kevlar and carbon fiber composite materials, furnishing it with exceptional pressure resistance.

Seamless communication made easy

Our system is equipped with both bridge and network communication modules, offering flexibility to cater to a wide range of operating conditions. With these advanced communication capabilities, distance limitations are eliminated, ensuring uninterrupted and reliable signal transmission.

Empowering you with the necessary force
Equipped with a ducted propeller, our system boasts high-speed, sailing capabilities while maintaining optimum performance during low-speed operations. The propeller is designed for effortless disassembly and maintenance, ensuring hassle-free upkeep.

Ensuring a safe and efficient system

Our system provides support for low voltage and lost automatic return, mitigating any potential risks and ensuring stable and reliable performance. With the ability to choose between straight-line return, original return, and set route return, our system is designed to operate seamlessly and safely in any environment.

Unparalleled battery longevity

Our intelligent battery system incorporates a fast-charging design, ensuring efficient charging times. Not only is our system lightweight and easy to carry, but it also boasts exceptional endurance, allowing for extended operation periods. The battery system is engineered for numerous cycles, maintaining its performance over time.

Product

VE158

Physical

Hull dimension (L × W × H)

1560 mm x 850 mm x 550 mm

Hull material

Kevlar + Carbon fiber material

Hull weight

41 kg

Anti-wave & wind

6th wind level and 4th wave level

Boat shape

M-type trimaran

Anti-sinking design

Closed-cell foam filling and fully enclosed
compartment anti-sinking design

Camera

360° full view camera

Navigation lights

A pair of navigation lights

Electrical

Battery life

6 hours (1.5 - 2 m/s)

Battery capacity

2*(40,000 mAh, 33.6 V)

Cruising speed

1.5 - 2 m/s

Maximum speed

≥5 m/s

Motor

Brushless DC motor ( BLDCM)

Propeller

Ducted propeller

Navigation and Commander System

Navigation model

        - Manual mode

       - Automatic mode

         - Cruise mode

Positioning system
(Optional)

Positioning mode:
    - Autonomous
    - DGPS
    - RTK
Positioning accuracy:
     - Horizontal: 8 mm ± 1 ppm
     - Vertical: 15 mm ± 1 ppm

Direction control

Differential steering

Communication
loss protection

          -  Automatically return to base when the communication is lost

          - GPS anti-theft system (Optional)

Communication

Communication mode and distance

          - 2.4G Wi-Fi: 2 km

         - 4G network: unlimited

Software platform

Windows 10 or above

Software function

        - USV management

         - Route management

         - Status display

         - Data management

         - Log function

Remote control unit

        Waterproof, dustproof and drop-proof

        Digital high-definition image transmission

        Ultra-long link

        Impressive battery endurance

Available Instrumentation

Sensor (Only choose one)

        Single-beam echo sounder

        Multi-beam echo sounder

        Side scan sonar

        ADCP

        Online water quality monitoring system

        Water sampling System

Single-beam Echo Sounder

Frequency

200 kHz

Beam angle

5°

Sounding range

0.3 -100 m

Sounding accuracy

±1 cm ±0.1% D (D:depth of water)

Resolution

0.01 m

Data output

RS-232
(Depth data format can be customized)
  • VE158 Datasheet-V1.2-ENG.pdf

Related Products

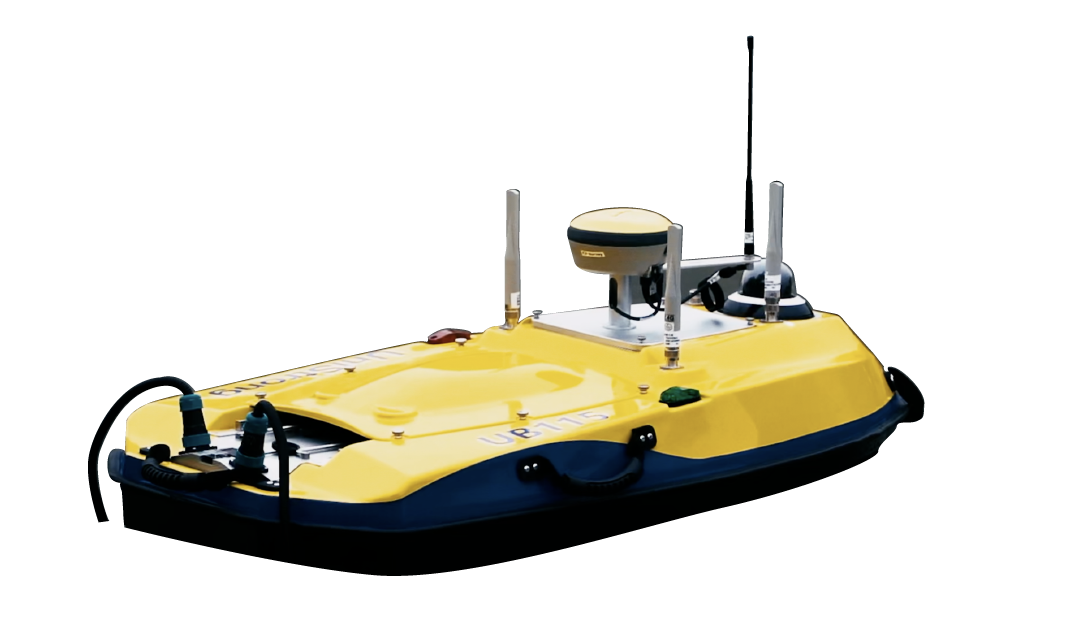

VE115
