eDrone3

Unmanned Aerial Vehicle Solution

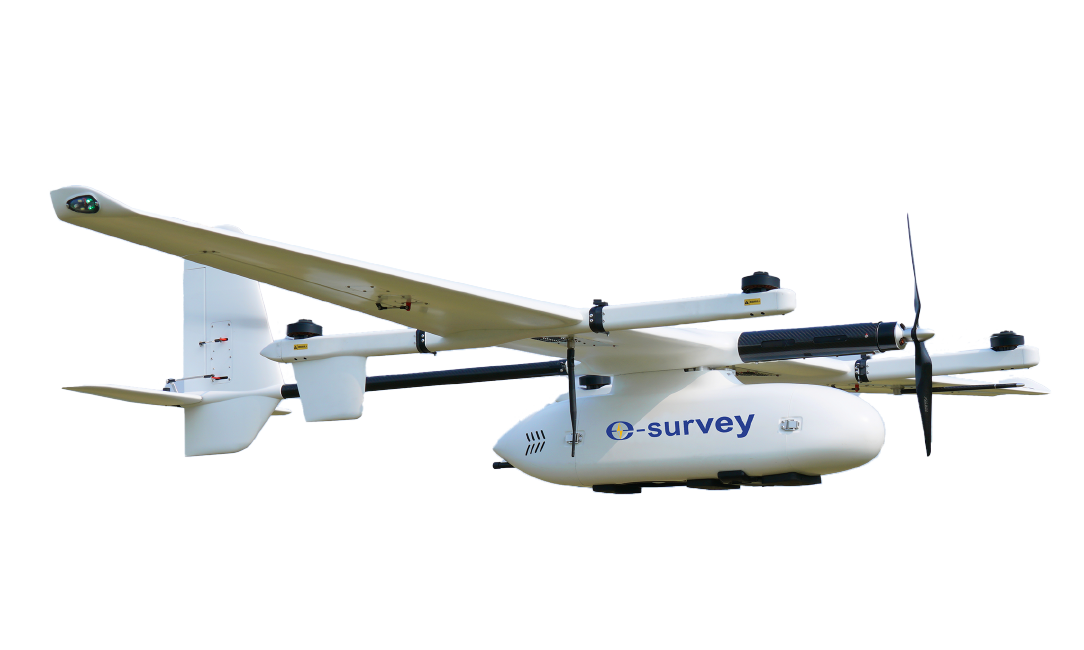

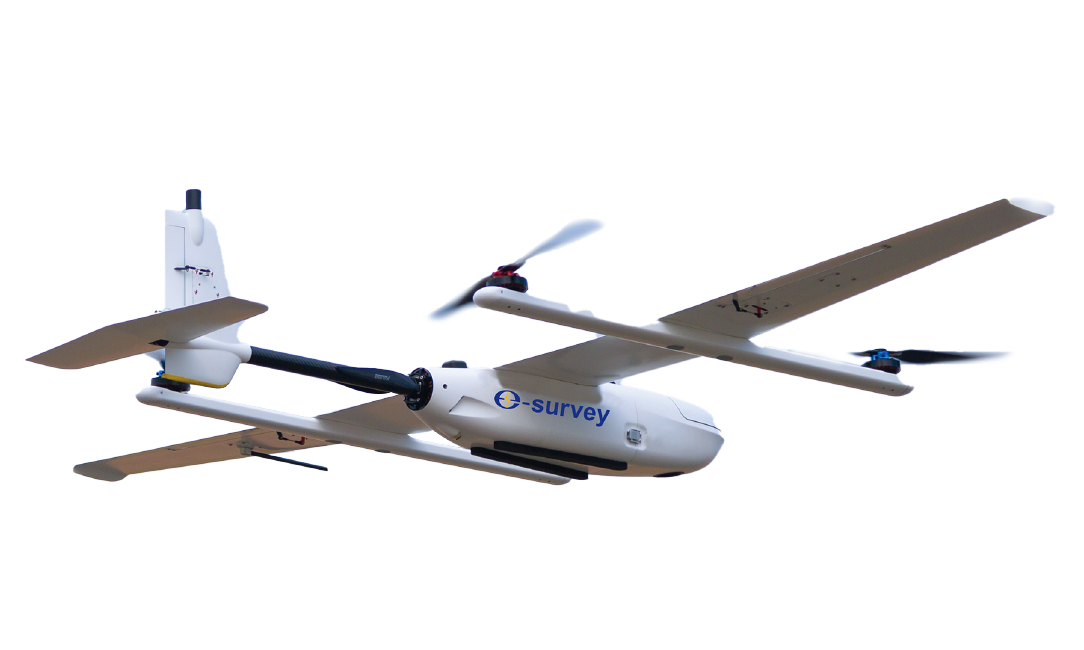

The eSurvey eDrone3 is a high-performance vertical takeoff and landing (VTOL) fixed-wing uncrewed aerial vehicle system. It owns the following outstanding features: - High safety from takeoff to landing, powered by its obstacle avoidance system and advanced algorithm. - Automatic and intelligent screening of the landing point during the landing phase and avoidance of danger in real-time to ensure the safe landing, driven by its binocular intelligent landing system. - Improved system reliability, anti-interference, and expansion ability, supported by our all-digital bus avionics technology. - Fault management, automatic recovery and update of each node, and easy use of the aircraft, thanks to the multi-redundancy design of key sensor modules. - One-key intelligent pre-flight inspection, wireless data download, and intelligent management

Safe Flight and Warning Reminder: Impressive Reliability

No longer need to worry about flight safety, powered by forward-looking and down-looking millimeter-wave radar and binocular visual obstacle avoidance system, and receive a warning that an aircraft is approaching, supported by the ADS-B system.

Impressive Battery Life: Ultra-long Endurance

Operate your UAV to fly up to 3 hours, driven by aerodynamic optimization, power system optimization, and customized high-energy-density batteries (27000 mAh).

Multi-sensor Redundancy Technology: More Stable and Reliable Flight

Enjoy fault management and automatic recovery and update of each node, supported by the redundancy management of key sensor modules, including 3IMU configuration, main backup GNSS, dual differential antennas, and external magnetic compass direction-finding.

Intelligent Battery: Reliable BMS System

A reliable health management system, the Intelligent battery also supports a self-heating function, which can be turned on automatically in low-temperature environments to ensure flight safety

Automated Pre-flight Inspection: Simple and Time-Saving

Complete all pre-flight inspections at the ground station with one click and no longer need to finish cumbersome traditional flying inspections, benefiting from the eDrone3 avionics system and online management of distributed avionics system networking.

Heated and Drained Airspeed Tube

Equipped with a heated and drained airspeed tube to ensure safe flight in high altitude, high humidity, low temperature, and light rain environments.

Hardware

Fuselage

2060 mm

Height

620 mm

Wingspan

3540 mm

Maximum takeoff weight

17 kg

Smart battery

27000 mAh

Smart battery charger

1200 W x 2

Radio link

840 - 845 M

Carrying case size

1370 mm (L) x 605 mm (W) x 525 mm (H)

Software

Flight Planning Software

eFlight GO Software

Safety Performance

Forward obstacle avoidance

240 m (millimeter wave radar)

Obstacle avoidance

240 m (millimeter wave radar)

Downward obstacle binocular

50 m (binocular camera)

Payload

Mission payload

3 kg

Flight

Flight endurance

3 hours (2 kg payload@1000m altitude)

Cruise speed

61 km/h

Wind resistance

Level 6 (10.8 - 13.8 m/s)

Water proof

Rainfall capacity ≤ 10 mm / 24h

Take-off and landing

VTOL

Maximum flight ceiling

6500 m

Maximum takeoff altitude4500 m
Positioning accuracy

Vertical: 3 cm

Horizontal: 1 cm + 1 ppm

Direction finding method

Double differential GPS direction finding

Backup magnetic compass direction finding

Navigation lights

Automatically turn on after takeoff

Automatically turn off after landing
