eDrone1

Portable Aerial Photography Solution

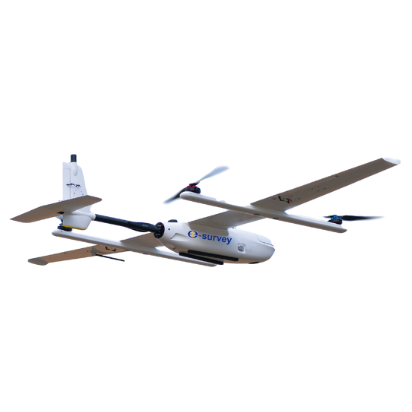

The eSurvey eDrone1 is a small vertical takeoff and landing (VTOL) fixed-wing uncrewed aerial vehicle system, and it can be widely used in fields, including aerial survey, agriculture, surveillance, etc. It owns the following outstanding features: - Full autonomous flight and integrated backpack design, saving labor. - Creative power management module that the whole uncrewed aerial vehicle is powered by one battery, simplifying the operation process and improving the power supply's efficiency.

Lightweight and Integrated Backpack Design: Easy to Carry

Easily carry it by yourself in a variety of complex environments, with a total weight of less than 14 kg.

Intelligent Battery: Reliable BMS System

Battery capacity accurate to 5%, charge and discharge safety protection. Use the CAN interface to communicate with the flight control and charger. The device offers a one-key switch power display, discharge, and heating modes.

Unique Design: Sci-fi Look

Experience extreme waist push power; flying power is leveled in the waist.

RTK/PPK: Accurate Flight and Precise Mapping

Powered with both RTK and PPK modes. RTK is mainly used for precisely and autonomously vertical land by the accuracy of centimeter-level, while PPK is used to output high-precision POS data, ensuring a reduction of more than 80% ground control points.

Dual Redundant Backup: Escort for Your Safety

Enjoy dual safety systems, in which the eDrone1 will automatically switch over to the standby system if the active one (built-in system) is not working during flight.

Automation: Simplicity of Operator

No remote controller, one button for takeoff and land. Landing accuracy within 10 cm.



Hardware

Fuselage

1300 mm

Height

620 mm

Wingspan

2200 mm

Maximum takeoff weight

6.8 kg

Smart battery

18000 mAh

Smart battery charger

1200 W x 2

Radio link

840 - 845 M

Carrying case size

1200 mm (L) x 500 mm (W) x 400 mm (H)

Software

Flight planning software

eFlight Commander software

Flight

Flight endurance

1 hour

Cruise speed

65 km/h

Wind resistance

Level 6 (10.8 - 13.8 m/s)

Waterproof

Rainfall capacity ≤ 10 mm / 24h

Take-off and landing

VTOL

Maximum flight ceiling

6000 m

Maximum takeoff altitude

4500 m

Positioning accuracy

Vertical: 1.5 cm + 1 ppm

Horizontal: 1 cm + 1 ppm

Payload

Mission payload

1 kg

Number of CCD

1

Sensor size

35.7 mm x 23.8 mm (35 mm full frame)

Effective pixels

61MP

Storage capacity

Photo: 256GB x 1 (TF card)

POS: 16GB x 1 (TF card)

Working temperature

-20°C - 45°C

Weight

About 290 g (only camera)



The actual performance may vary, due to differences in individual product configurations, software versions, application conditions, and environmental factors. This datasheet is only for reference, Shanghai eSurvey GNSS Co., Ltd. has the right to final interpretation.

  • eDrone1 Datasheet-V2.0-ENG.pdf
