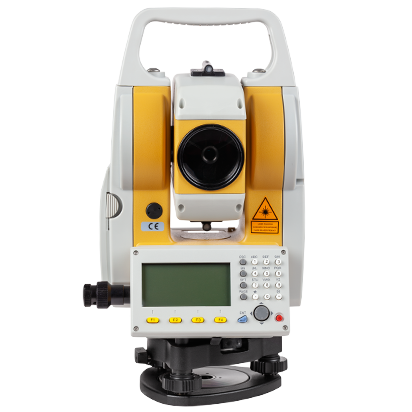

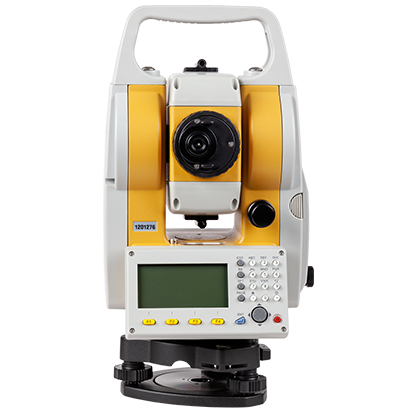

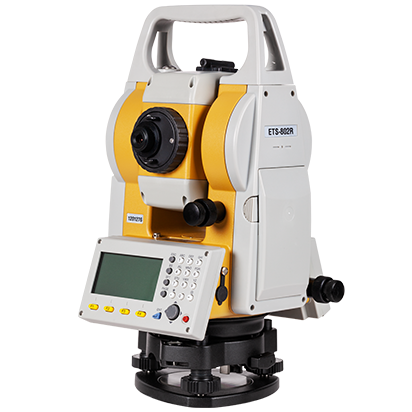

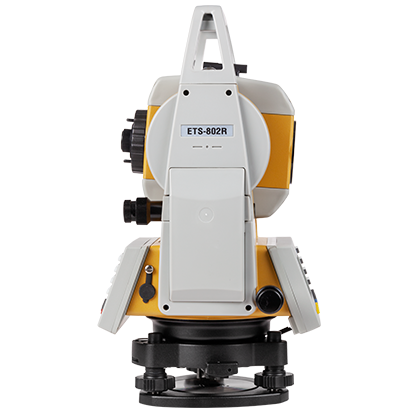

ETS802R is a high-precision total station, providing customers with accurate angle and distance measurement. Built-in with common used measurement formulas. The fast, accurate and stable measurement definitely brings you with new experience.
1. 2" Angle Measurement
2. 30x Telescope Magnification
3. Up to 800m Without Prism
4. Supports Multiple Language
5. Compensator Range ±3'
6. Fast and Reliable Measurement
Angle Measurement
Reading System
Absolute encoder
Display Resolution
1” / 5” / 10”
Minimum Reading
1”
Accuracy
2”
Telescope
Magnification
30x
Field Angle
1°30'
Minimum Focus
1.5 m
Object Aperture
45 mm
Erect
Compensator
Compensator Range
±3’
Distance Measuring Range
Single Prism Range
7500 m
Reflector Range
1000 m
Non-Prism Range
800 m
Distance Measuring Accuracy
1 mm
Prism Accuracy
± (2 mm + 2 ppm • D)
Reflector Accuracy
Non-Prism Accuracy
± (5 mm + 3 ppm • D)
Measurement Time
Tracking/Rapid/Fine
0.4 s / 0.9 s / 1.8 s
Level Vial Sensitivity
Plate Level
30” / 2 mm
Circular Leve
8’ / 2 mm
Lase Plummet
Laser Spot
1.5 mm/1.5 m
Data Management
Memory
50,000 Points
USB Drive
Support
Bluetooth
Battery
Voltage
DC 7.2 V-7.4 V
Capacity
2500mAh
Working Time
6 hours angle and distance
20 hours angle
Physical Specification
Dimension
190 x 210 x 350 mm
Weight
5.5 Kg
Screen
Dual 160 × 80 pixel
Interface
RS-232C
Water/Dust Proof
IP54
Working Temperature
-20 ℃ - +55 ℃
Storage Temperature
-40 ℃ - +60 ℃
Language
English, Spanish, Portuguese,
French, German, Turkish,
Italian, Russian, Ukrainian
