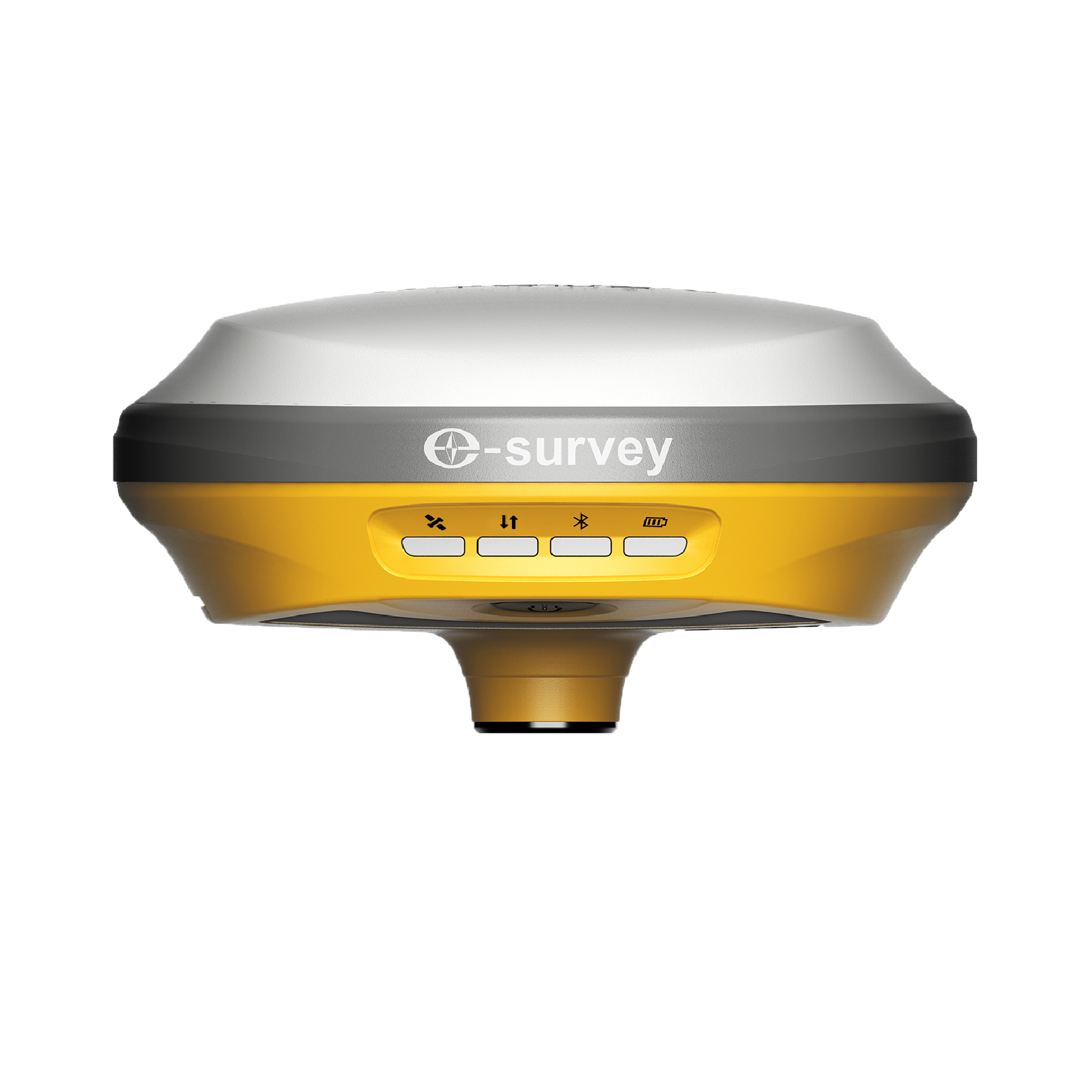

E100 is a network receiver by eSurvey GNSS. The durable IP67 design makes it possible to work in various of environments. Multi constellation and frequency tracking always gives a Fixed solution for your job. Thanks for the small-size design, E100 is suitable for different applications such as car and machine control.
1.
Multi-constellation
and multi-frequency
With
800 channels of GNSS tracking, E100 provides stable and reliable accuracy. All
GNSS signals are coming with standard including GPS, BDS, GLONASS, GALILEO,
QZSS and SBAS.
2.
MEMS
Dynamic Tilt Survey
eSurvey’s
innovation tilt survey solution provides a surprising experience. The sensor is
adapted to various of working environments and can be ready within 10 sec.
Maximum 60° incline angle ensures a
tilt-to-go survey without stopping your work.
3.
L-band
Atlas
Atlas
is a service to provide global precision correction service over L-band
satellites. With ATLAS subscription, E100 is able to achieve centimeter
accuracy without any base station.
4.
aRTK
Powered
by Atlas, the innovative aRTK technology operates on any Atlas-capable device
by enabling it to maintain RTK-level accuracy, availability, and reliability
when RTK corrections fail without additional cost.
5.
Web
UI
It
is able to view position status, set up working mode, download data and update
firmware from Web user interface with any phone, tablet or PC.
6.
Intelligent
Voice
E100
will broadcast voice automatically to remind user the solution status is
changed. It is also able to manually broadcast current working mode and
solution status by short pressing power button.
7.
Lightweight
and Small-size
E100
is only 900g and is good for hand carrying. The small size design makes it
possible for various of applications such as car and machine control.
8.
Rugged
Design
E100
main body is using magnesium materials to provide strong shock and vibration
resistant characteristics. IP67 certification ensures operation in various of
tough environments.
GNSS |
|
Satellites Tracking |
GPS: L1CA/L1P/L1C/L2P/L2C/L5 BDS: B1I/B2I/B3I/B1C/B2a/B2b/ ACEBOC GLONASS: G1/G2/G3, P1/P2 GALILEO: E1/E5a/E5b/E6/ALTBOC QZSS: L1CA/L1C/L2C/L5/LEX IRNSS: L5 |
Channels |
800 |
Signal Reacquisition |
< 1 sec |
Cold Start |
< 60 sec |
Warm Start |
< 30 sec |
Hot Start |
< 10 sec |
RTK Signal Initialization |
< 8 sec |
Initialization Reliability |
> 99.9% |
Update Rate |
10 Hz standard, up to 50 Hz |
Operation System |
Linux |
Internal Memory |
8 GB (32GB Customizable) |
Performance |
|
High Precision Static |
H: 2 mm + 0.1 ppm V: 3 mm + 0.4 ppm |
Static/Fast Static |
H: 2.5 mm + 0.1 ppm V: 3.5 mm + 0.4 ppm |
RTK |
H: 8 mm + 1 ppm V: 15 mm + 1 ppm |
Code Differential |
H: 0.25 m V: 0.45 m |
SBAS |
H: 0.3 m V: 0.6 m |
L-Band |
Atlas H10: 4 cm RMS Atlas H30: 15 cm RMS Atlas Basic: 30 cm RMS |
Power
Supply |
|
Battery |
Rechargeable and built-in Lithium-ion
battery, 7.2 V ~ 6800 mAh |
Voltage |
9~28 VD, with over-voltage protection |
Working Time |
RTK: 10
hours |
Charging Time |
Typically 4 hours |
Internet
Modem |
|
Support Band |
Global 4G |
Communication |
|
Bluetooth |
BT 5.0, BLE |
WIFI |
802.11 b/g/n(HT20)/ac |
SIM Card |
Micro SIM card |
5-pin Port |
Connect to external radio and power NMEA data output |
Type-C Port |
Charge and data transmission |
Web UI |
View status, update firmware, set up
working mode, download data |
Intelligent Voice |
Broadcast working status |
NMEA Output |
GGA, ZDA, GSA, GSV, GST, VTG, RMC, GLL,
Binary |
Correction Data |
CMR, CMR+, RTCM2, RTCM3, RTCM32 |
MEMS |
Fast initialization, dynamic tilt
survey up to 60° |
|
|
Physical |
|
Dimension |
Φ148 mm x H60 mm |
Weight |
900±5 g |
Operating Temperature |
-40℃ ~ +65℃ |
Storage Temperature |
-45℃ ~ +80℃ |
Water/Dust Proof |
IP67 |
Shock |
Survive a 2 m drop on concrete floor |
Vibration |
Vibration resistant |
Humidity |
Up to 100% |
Indicators |
Satellites, datalink, battery,
Bluetooth |
Button |
Power button, short press to voice
broadcast status |
Certificate |
CE, FCC, NGS Calibration |
